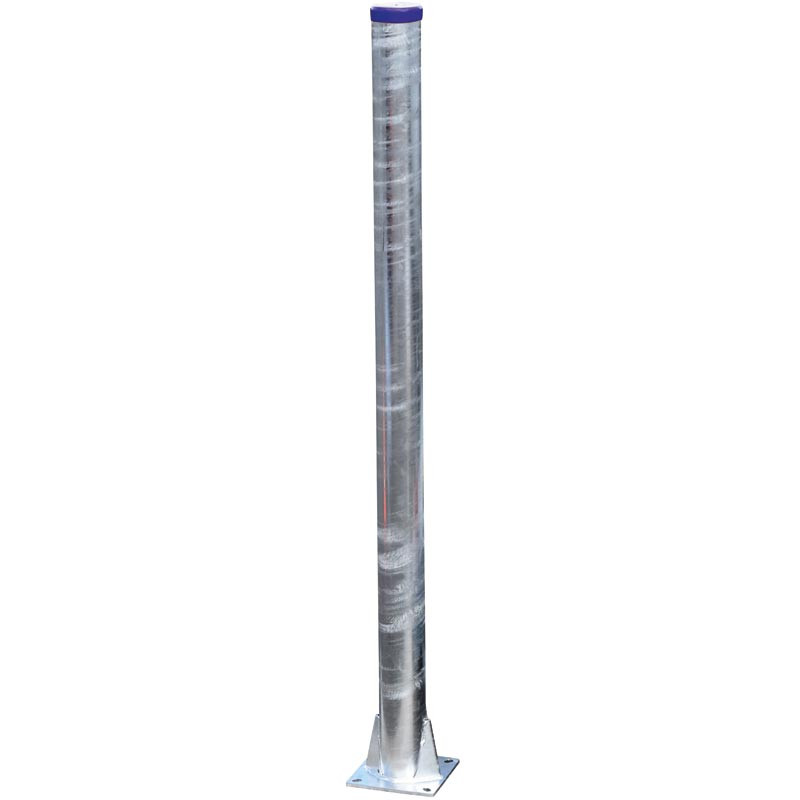

Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm
Ø 102 mm bared post on plate - H. 1.68 m - Thick. 4 mm

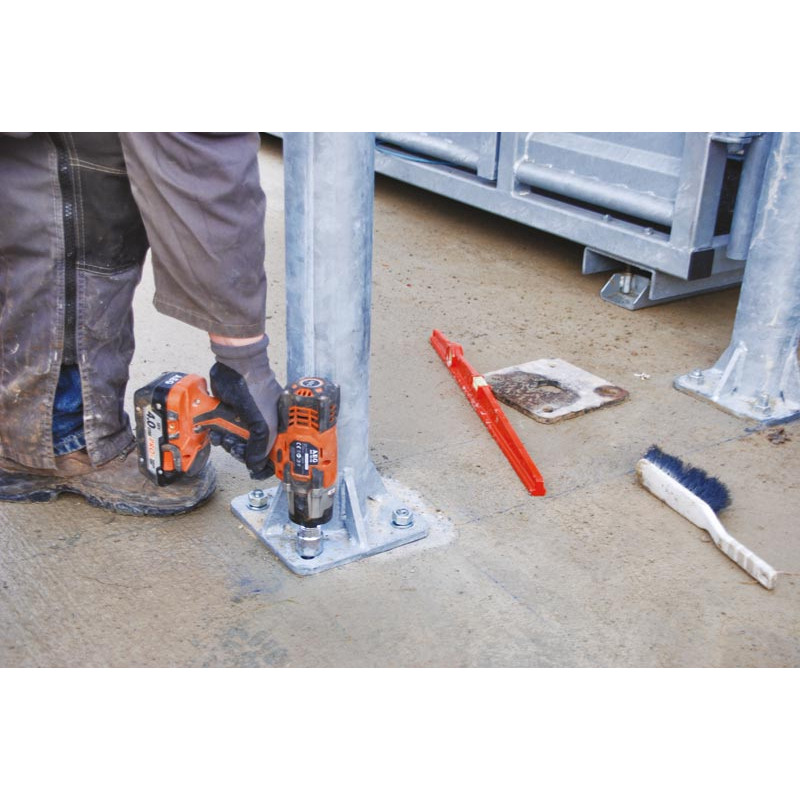

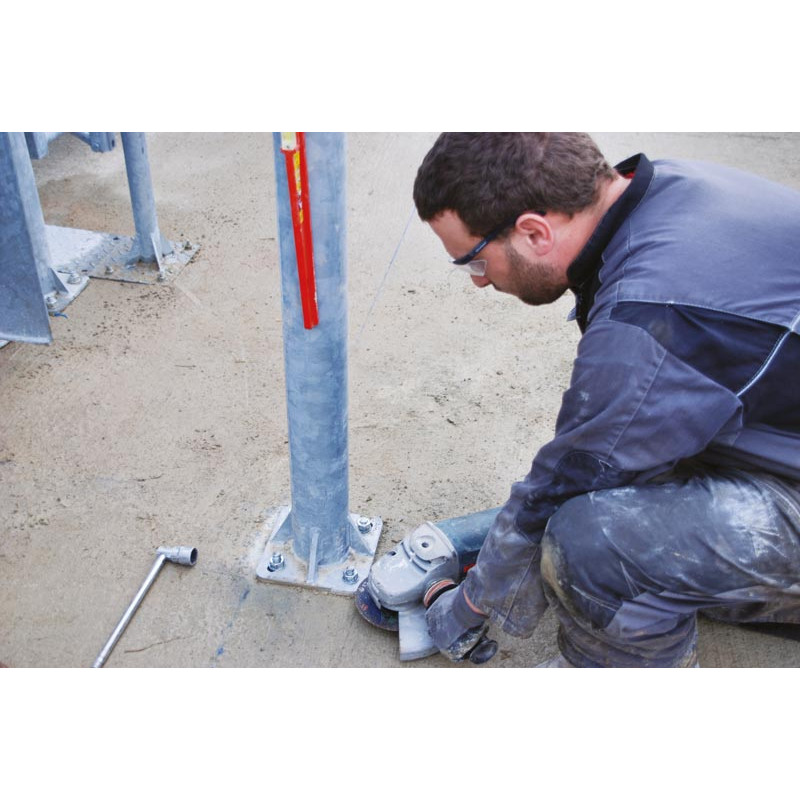

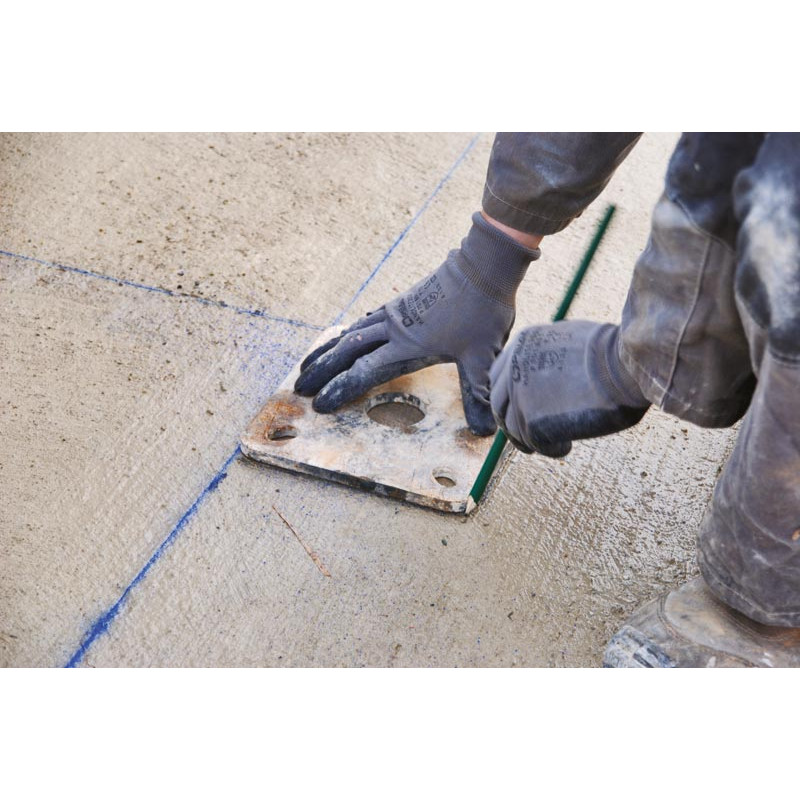

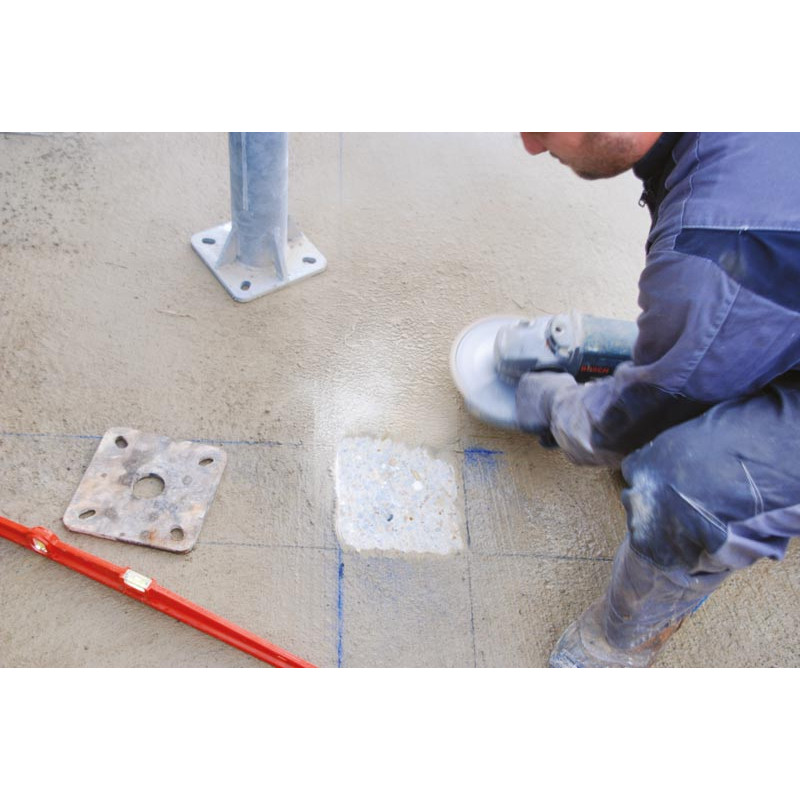

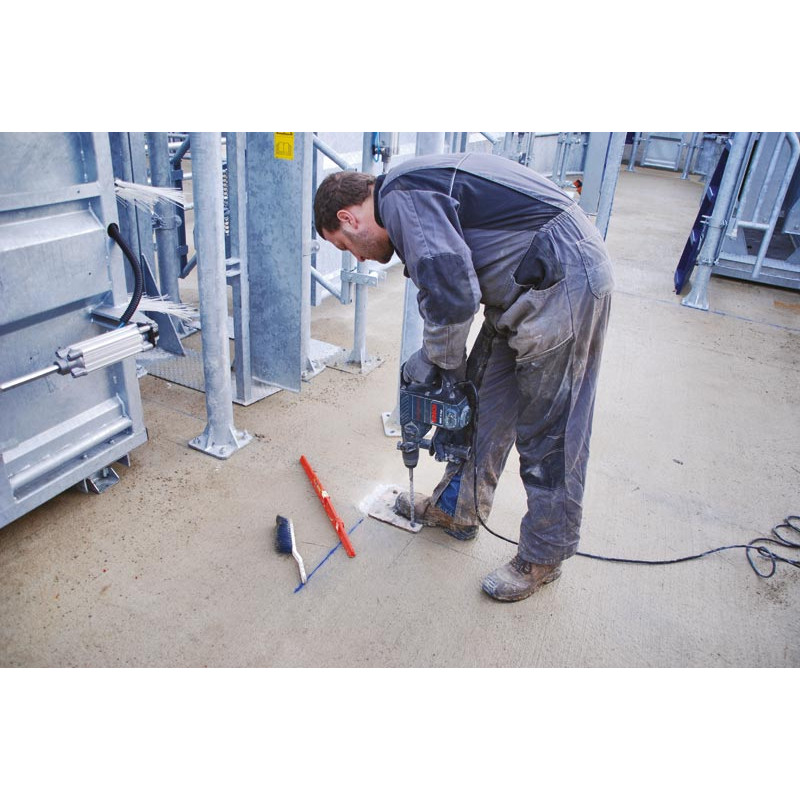

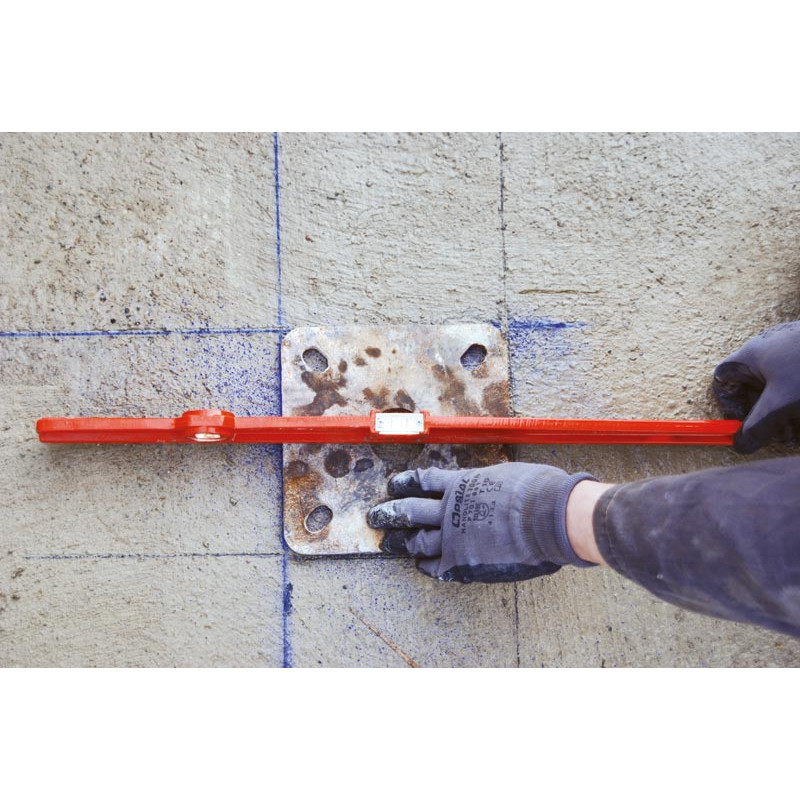

Designed to be installed on a concrete slab with a minimum thickness of 15 cm with concrete correctly dosed in accordance with industry standards. Attachment must be by means of 4 mechanical anchors (Ø 16 mm, length 120 mm). Under these conditions this post can accommodate panels or barriers opening for maximum lengths of 5 to 6 m.


With sealing cap.


Delivered in a strapped package that can be stacked.
Diameter
102 mm
Height
1.68 m
Model
standard
Sales unit
Unit
Packaging
Material
galvanised steel
Net weight
20 kg
Fastening
On mounting plate
Thickness
4 mm
Mounting plate
200 x 200 mm
