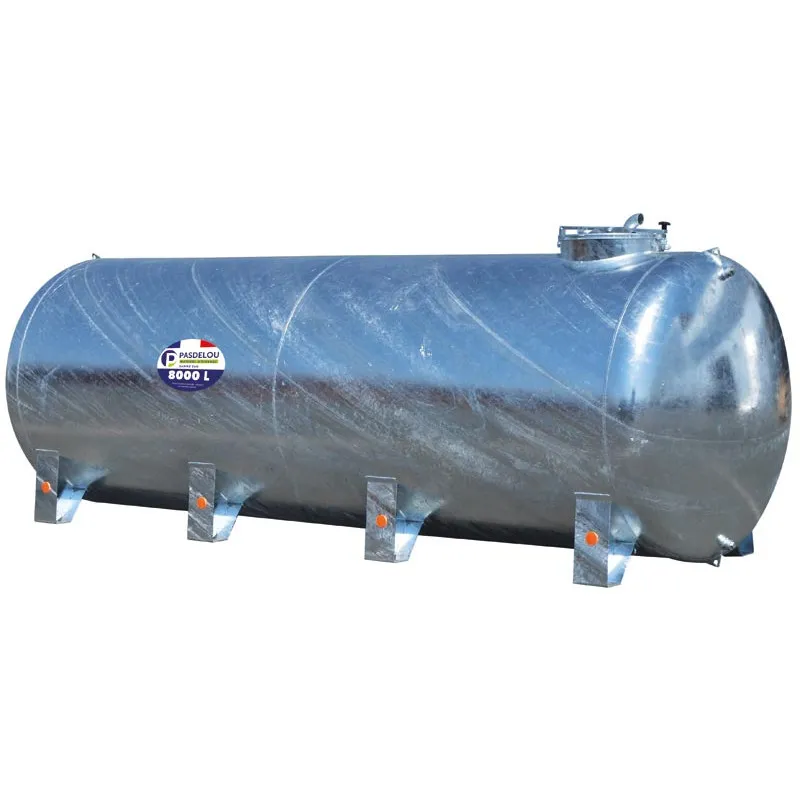

Water tanks on legs 8000 L

Tank technical features:

The hot-dip galvanising process may leave in ash deposits inside the tanks.
It is therefore necessary to wash the tanks before use and before installing the valves and trough supplyaccessories.

Monobloc design, seam welded to ensure strength
and leak-tightness.

Equipped with:

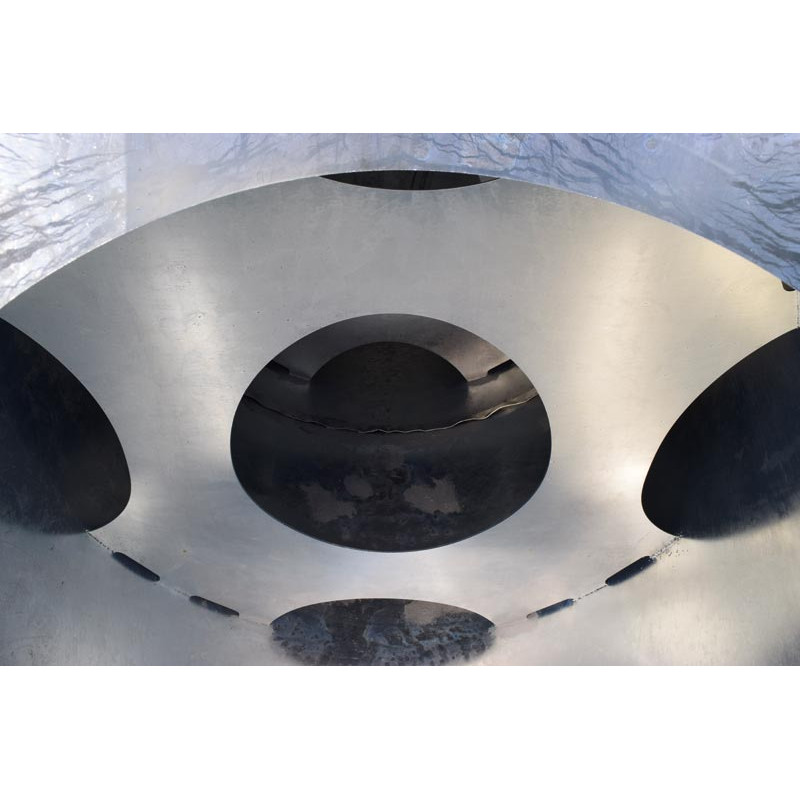

- One ‘wave-quelling’ float for 3200 and 4400 litre bowsers and two ‘wavequelling’ floats for 5200 to 8000 litre bowsers.

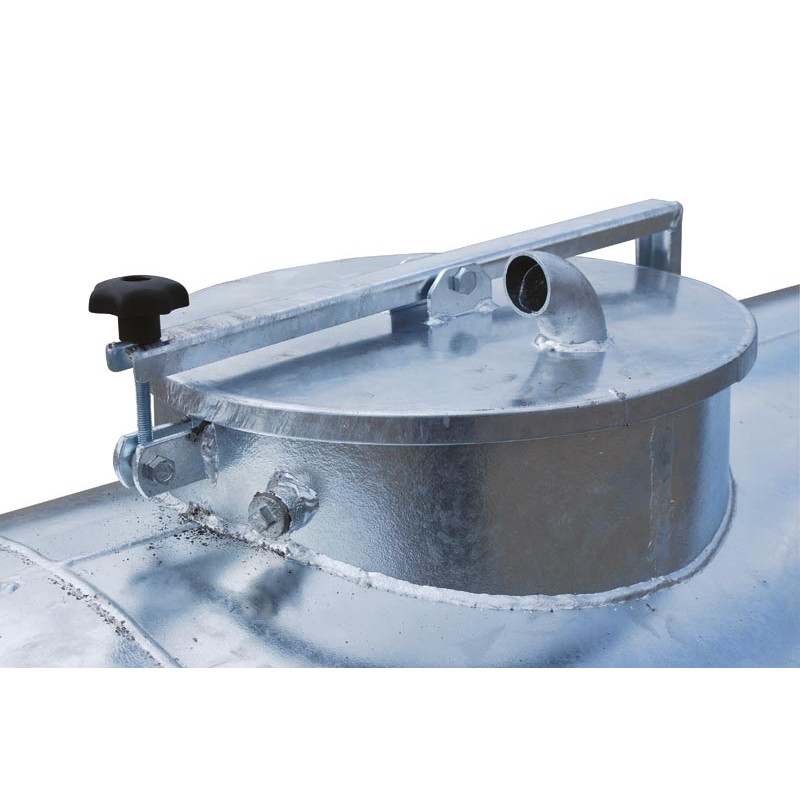

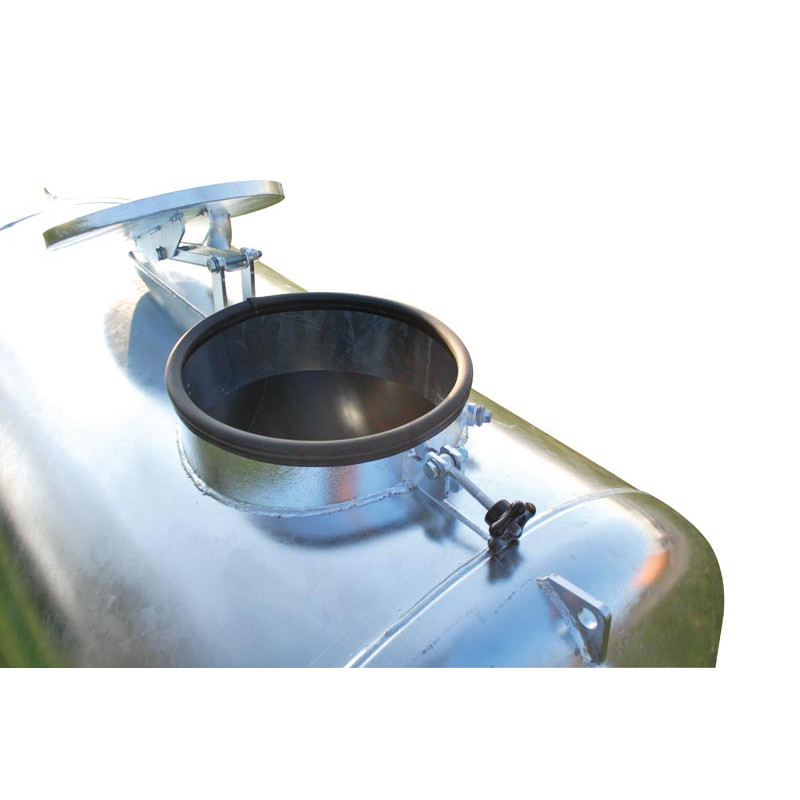

- Hinged cover on manhole with seal. Pre-drilled to receive optional float valve with galvanised casing.
- Vent Ø42 mm for 500 to 1100 litre models and Ø60 mm for 1500 to 8000 litre models, which also acts as a hose inlet for filling.

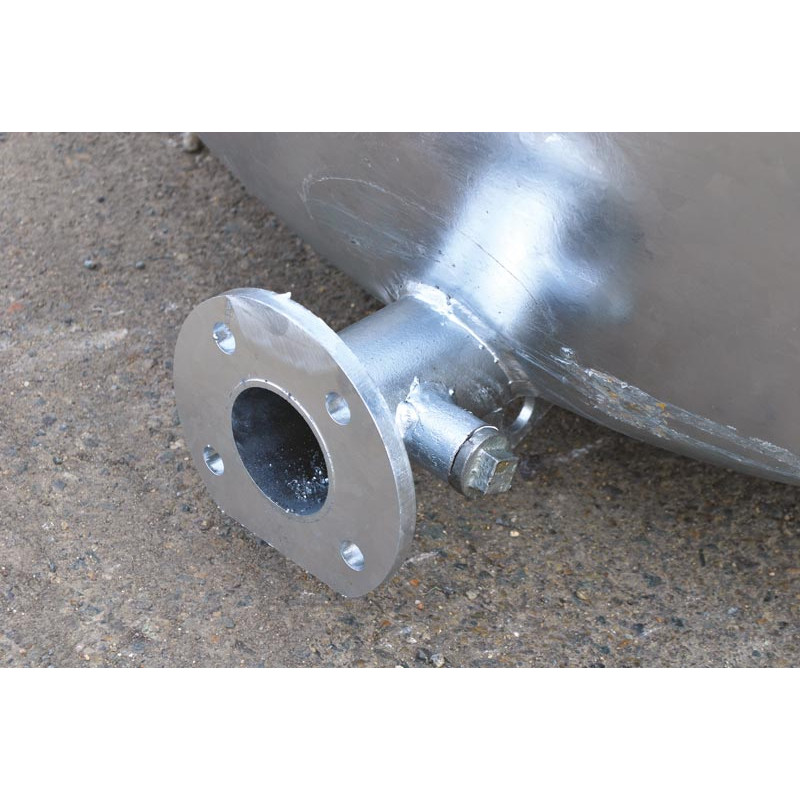

- Main rear outlet Ø80 mm (3" 1/8) on a plate with 4 holes, designed for attaching different valve options, and a Ø20/27 mm (3/4") threaded female outlet on the main outlet side.

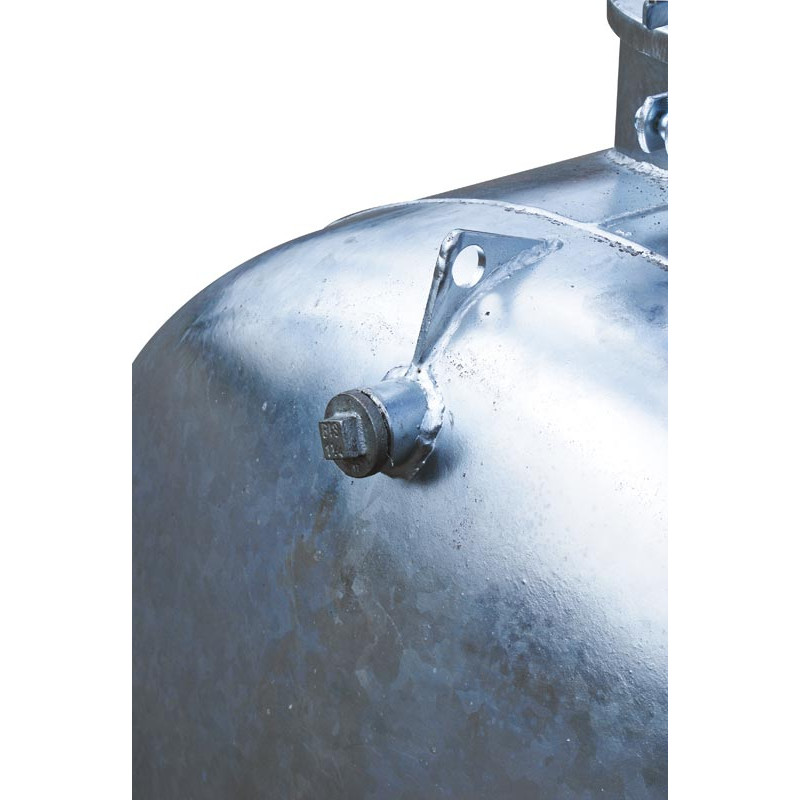

- Upper and lower outlet with Ø20/27 mm (3/4") threaded female nipples for bowsers up to 2000 litres and Ø 3/42 mm (1" 1/4) for bowsers over 2000 litres.

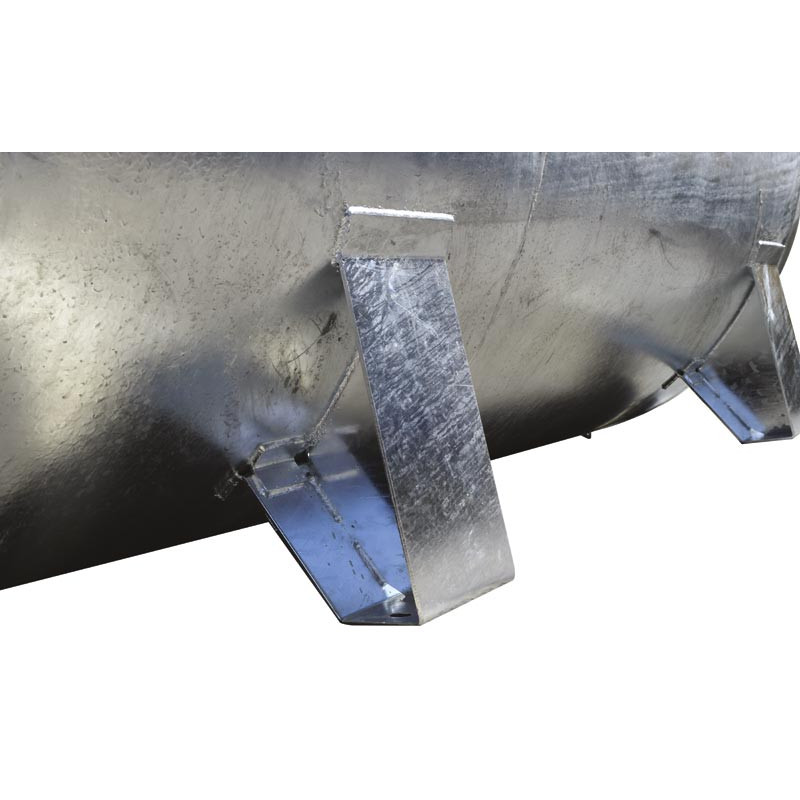

- Wide legs with 4 mm thick reinforcing plate.
