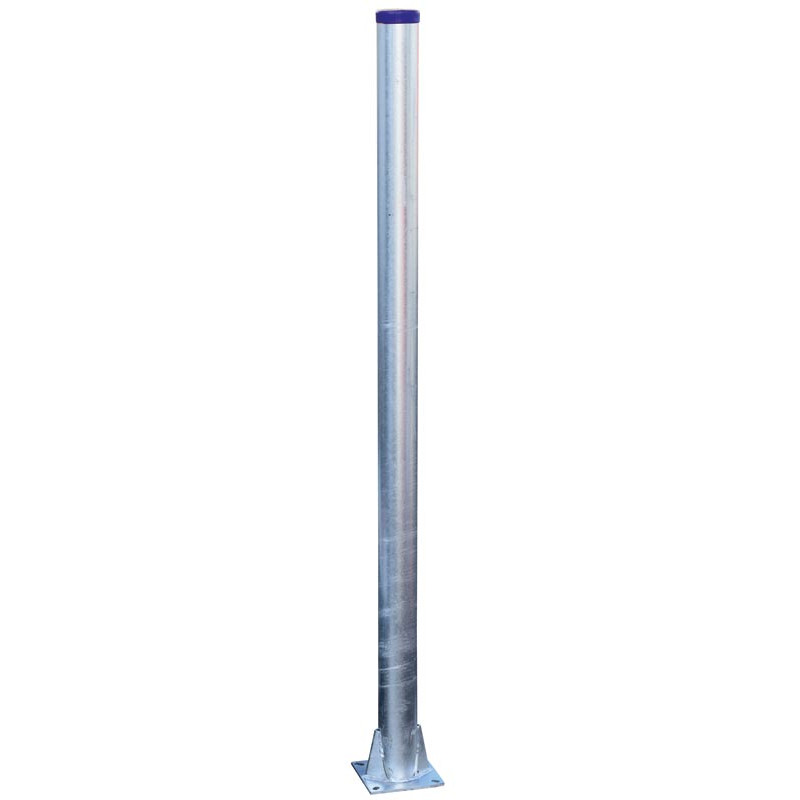

Ø 102 mm bared reinforced post on plate - H. 1.98 m - Thick. 5 mm

Designed to be installed on a concrete slab with a minimum thickness of 15 cm with concrete correctly dosed in accordance with industry standards. Attachment must be by means of 4 mechanical anchors (Ø 16 mm, length 120 mm). Under these conditions this post can accommodate panels or barriers opening for maximum lengths of 5 to 6 m.


With sealing cap.


Delivered in a strapped package that can be stacked.
Diameter
102 mm
Height
1.98 m
Model
reinforced
Sales unit
Unit
Packaging
Material
galvanised steel
Net weight
29 kg
Fastening
On mounting plate
Thickness
5 mm
Mounting plate
200 x 200 mm
