Water bowsers on trailers for green spaces 3200 L

Feature-Benefits :

These bowsers are suitable for maintaining green spaces.
Delivered assembled. Ready to operate.

EXPE_2_4S-P1.svg MATERIEL-P1.svg
> More details

Our trailers are approved for the FRENCH roads only.
Those do not comply with the European regulation 167/2013.The technical characteristics of our trailers are not compatible with the requirements of the various national regulations.It is your responsibility to approve this trailer in your country and to support all the costs linked to that approval.



Water bowser with continuous weld bolted to the trailer.

They are all equipped with:
- pump protection to prevent overpressure,
- a braked axle from the 1500 litre model,
- one ‘wave-quelling’ float for the 3200 and 4400 litre models and two ‘wave-quelling’ floats for the 5200 to 8000 litre models,
- lights protected by a metal grille,

The 890 and 1,100 litre green space water bowser comprise:
- a HONDA WX10 motorised pump with the following characteristics:
• 4-stroke engine, rating 0.72 kW, flow rate 120 l / min,
• maximum suction head: 8 m (ribbed hose with filter supplied),
• suction / discharge orifice: Ø 25 mm;
- a Tricoflex plastic hose reel retractor with 15 m Ø 15x21 (int/ext), withstanding a maximum pressure of 10 bars and a maximum temperature of 60°C;
- a 50 mm square adjustable stand.

The 1,500 to 8,000 litre green space water bowsers comprise:
- a HONDA WX15 motorised pump with the following characteristics:
• 4-stroke engine, rating 1.6 kW, flow rate 280 l / min,
• maximum suction head: 8 m (ribbed hose with filter supplied),
• suction / discharge orifice: Ø 40 mm,
- a Tricoflex plastic hose reel retractor with 15 m Ø 15x21 (int/ext), withstanding a maximum pressure of 10 bars and a maximum temperature of 60°C;
- a 70 mm square adjustable stand for the 1,500 to 3,200 litre models, a 70 mm square manual gear jack for the 4,400 to 6,200 litre models, a hydraulic stand with factory-fitted pump and reserve for the 8,000 litre model.
- adjustable front tow bar stand for 1500 to 3200 litre models, with jack stand for 4400 to 6200 litre models and hydraulics with pump and reserve fitted as standard for the 8000 litre model,



The bowsers are delivered assembled. They are tested and ready to operate.

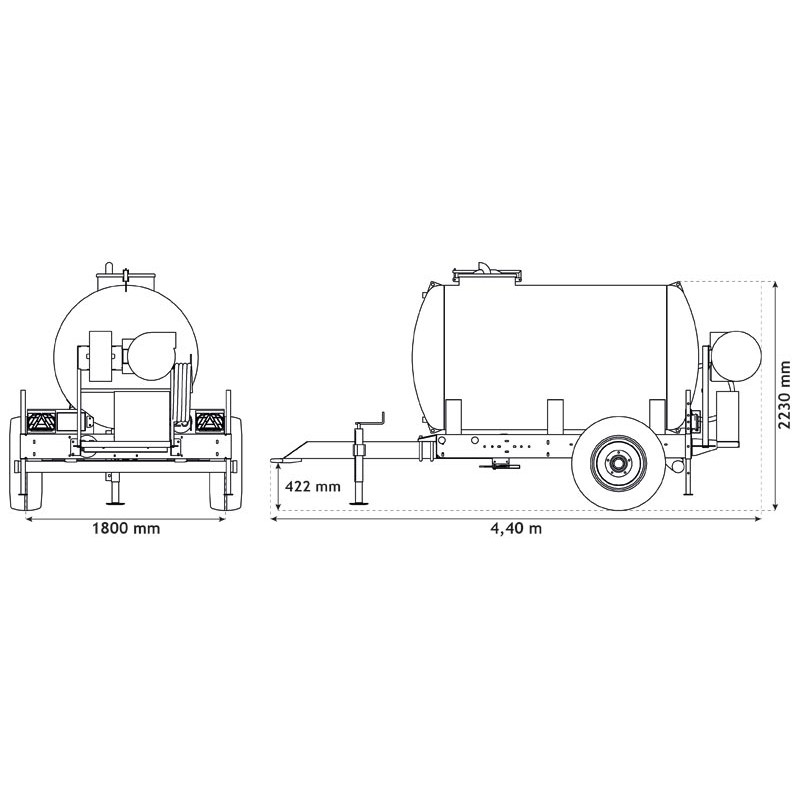

Capacity
3200 l
Diameter
1.30 m
Tyre
11.5/80 x 15.3 14 plies 6tr
Overall length
4.40 m
Axle
⧄ 60 mm
Drum diameter
250 x 60 mm
Stand
⧄ 70 mm
Hitch dimension
422 mm
GVW
4440 kg
Track
1800 mm
Bowser rear dimension
2230 mm
Sales unit
Unit
