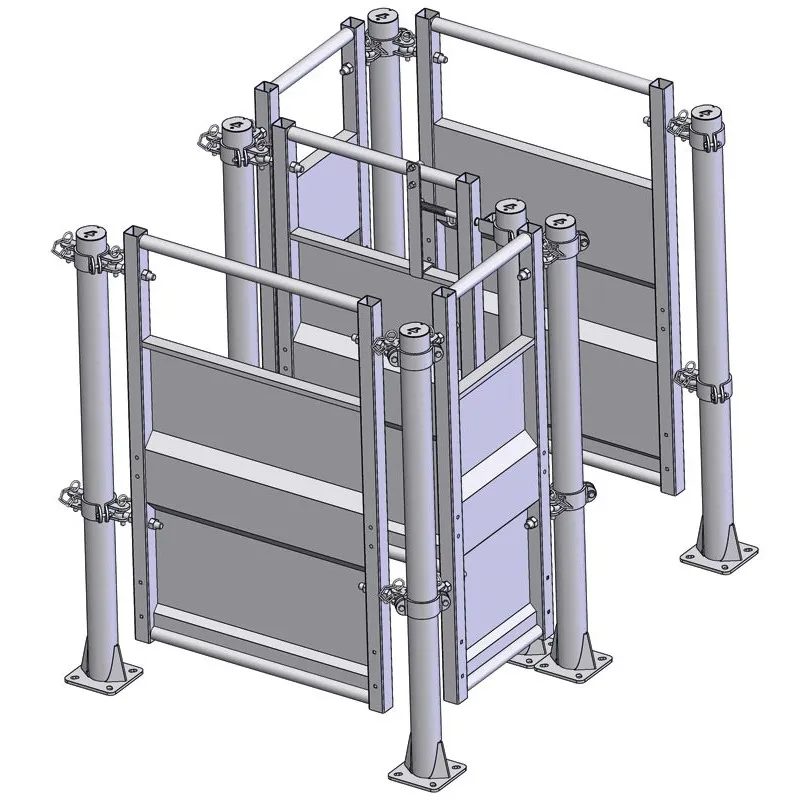

Race entry module with posts on plates

The entry module is designed to prevent animals, once they have entered the race, from turning back.
To do this, it is essential that the installation is put together in line with our instructions and using the correct panels.
The entry module is designed to be attached to the end of the forcing semi-circle and can be used as an entry to either the cattle handling or drafting race.

Module composition:
- 7 reinforced bare posts Ø 102 mm on 200 x 200 mm plate with a thickness of 10 mm with reinforcing gusset plates, height 1.68 m x thickness 5 mm;
- 2 pairs of 1 direction flanges Ø 102 mm with screws and bolts;
- 2 pairs of 2 directions flanges at 90° Ø 102 mm with screws and bolts;
- 1 pair of double flanges (opposite each other) Ø 102 mm with screws and bolts;
- 1 pair of 3 directions flanges Ø 102 mm with screws and bolts;
- 2 sheeted straight panels with fixed bar, length 0.78 m x height 1.55 m, sheeted over 1.15 m;
- 1 straight sheeted panel with fixed bar, length 1 m x height 1.55 m, sheeted over 1.15 m;
- 2 sheeted straight panels with fixed bar, length 1.20 m x height 1.55 m, sheeted over 1.15 m;
- 1 spring lock kit with flange Ø 102 mm for sheeted panel.
