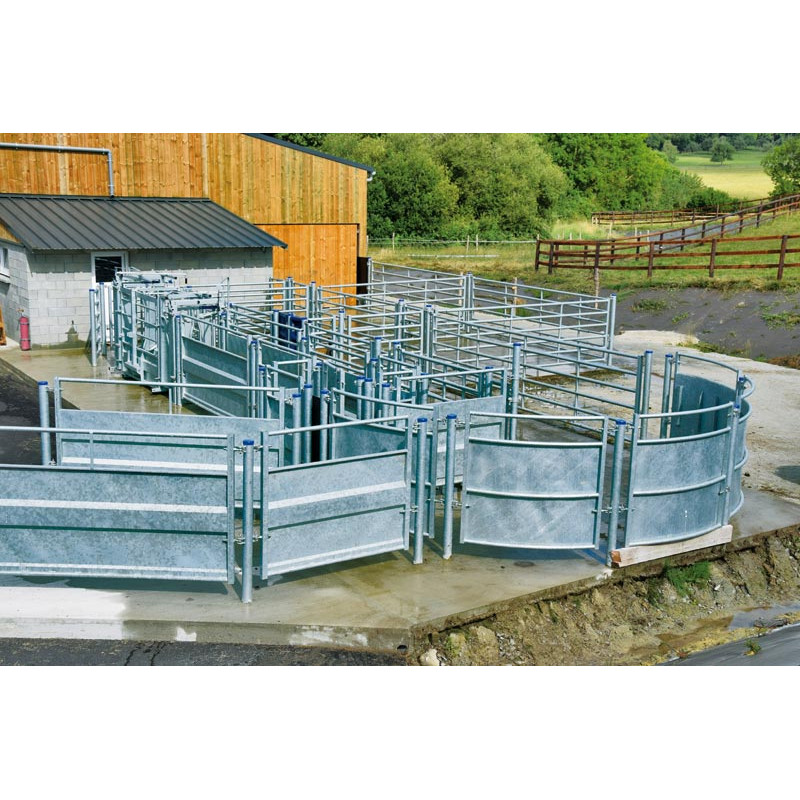

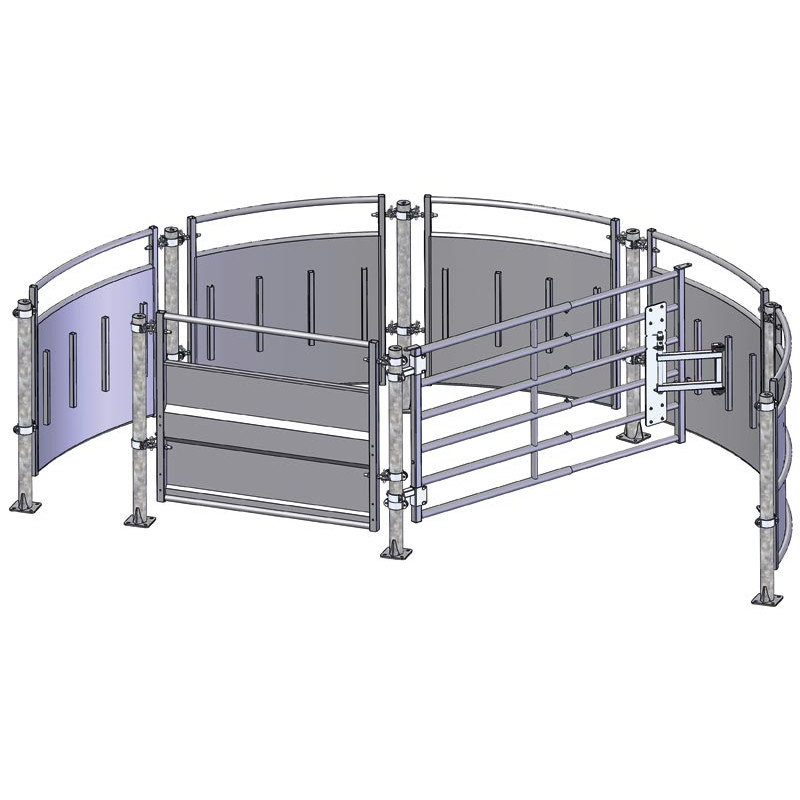

Semi-circular module with circular forcing area and posts on anchored plates

This assembly can be adapted to the size of the herd.
To do this, items can be added or removed. The Pasdelou semi-circular installation is designed to operate with a clockwise or anti-clockwise animal forcing system, so the direction of forcing must be decided when assembling the installation.
This system is very robust and is essential in beef cattle farming, where work is often intensive. It is very secure and is a significant time saver.

Module composition:
- 8 reinforced bare posts Ø102 mm on 200 x 200 mm plate with a thickness of 10 mm with reinforcing gusset plates, height 1.68 m x thickness 5 mm;
- 4 pairs of 1 direction flanges Ø 102 mm with screws and bolts;
- 4 pairs of 2 directions flanges (face to face) Ø 102 mm with screws and bolts;
- 5 curved sheeted panels with anti-backing (right or left), length 2 m x height 1.55 m, sheeted over 1.15 m;
- 1 straight sheeted panel with fixed bar, length 2 m x height 1.55 m, sheeted over 1.15 m;
- 1 rotation kit with silent anti-backing system for 6-bar fence;
- 1 six-bar rear end panel, height 1.43 m x length 1.47 m;
- 1 six-bar front end panel, height 1.43 m x length 1.70 m;
