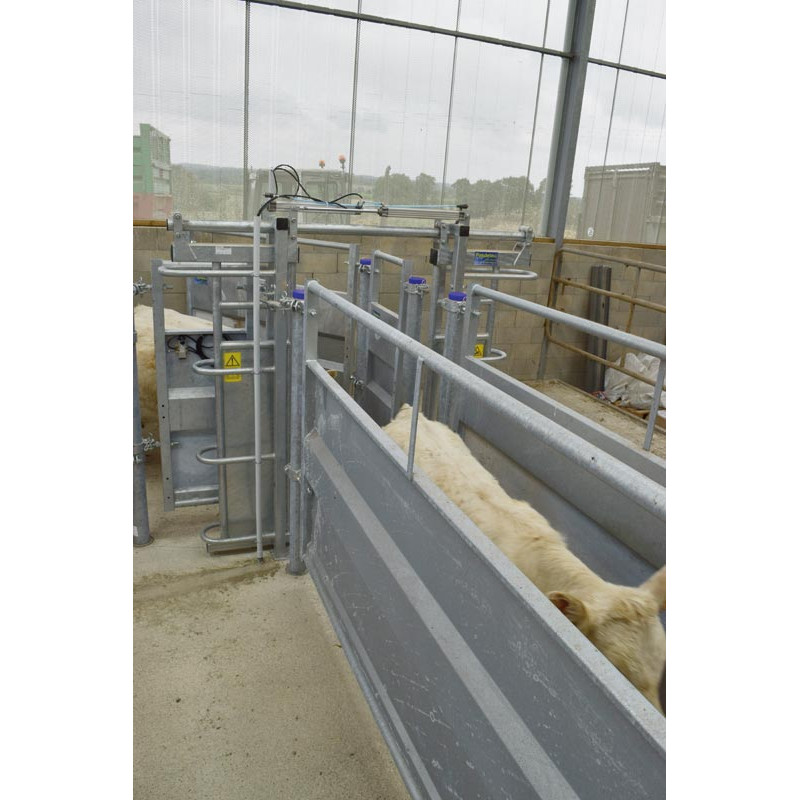

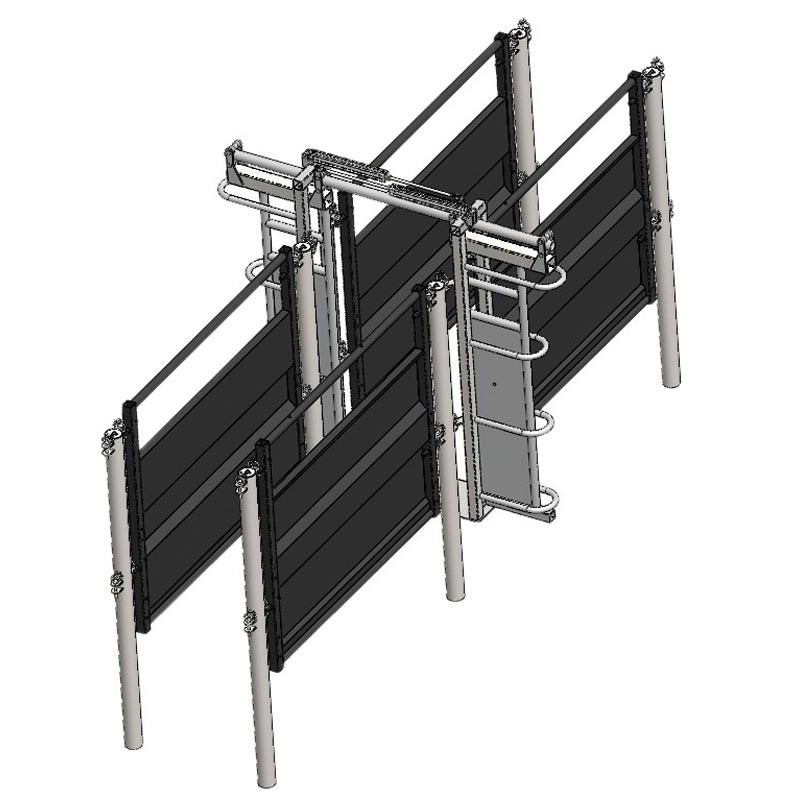

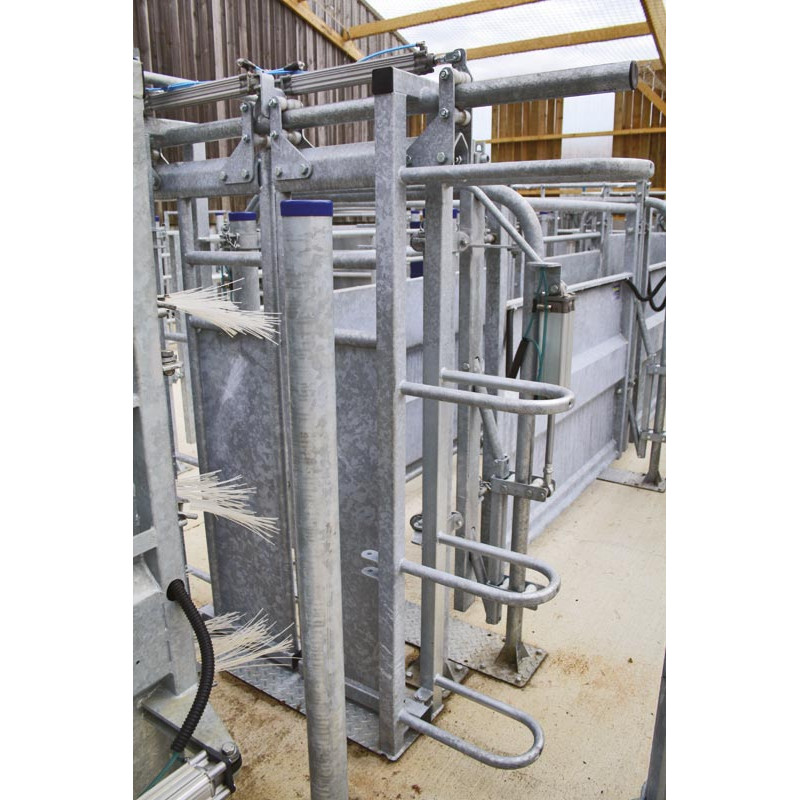

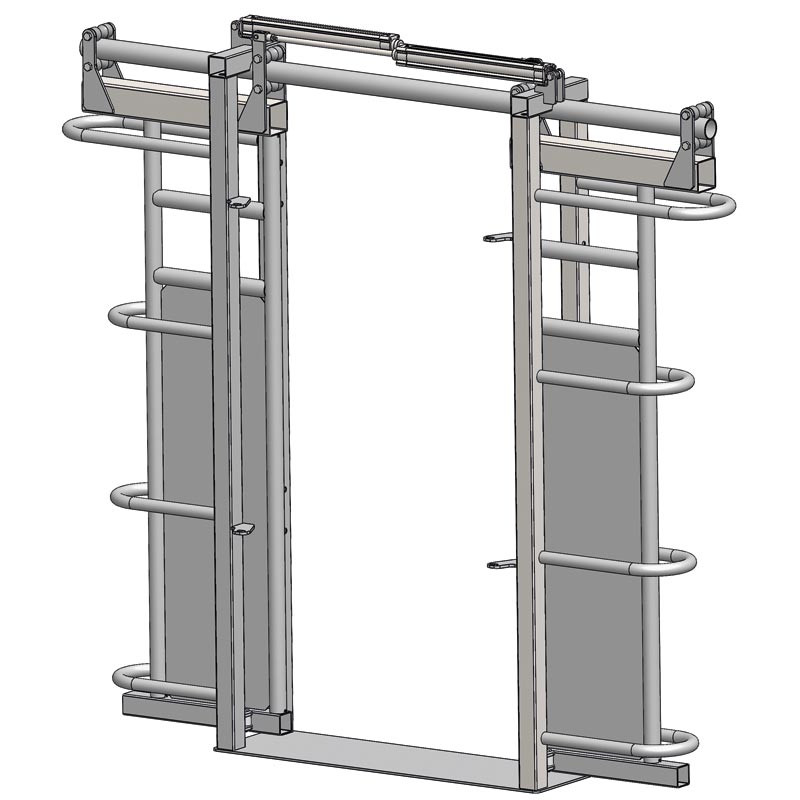

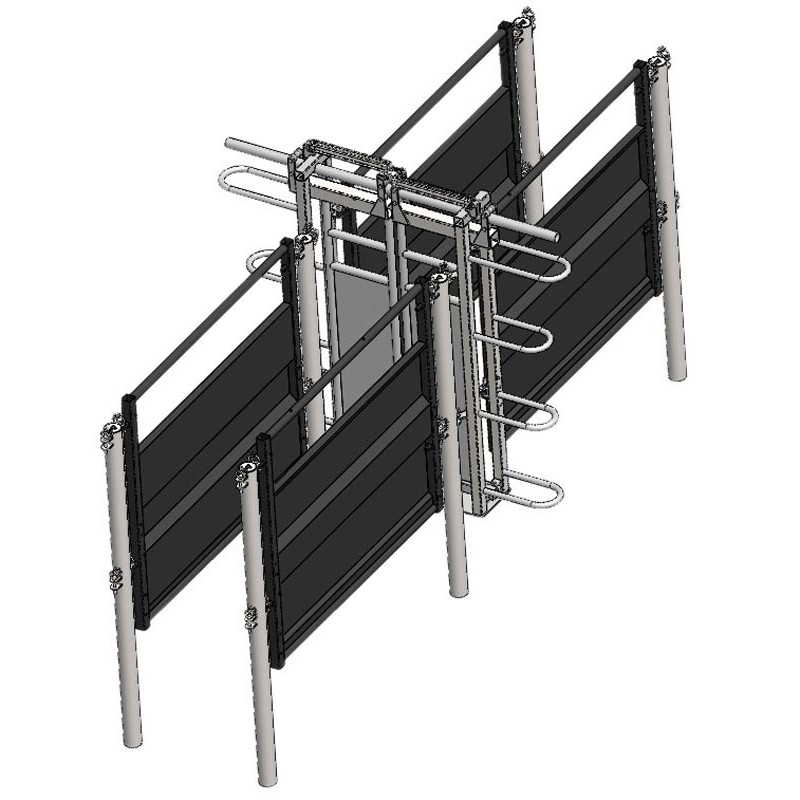

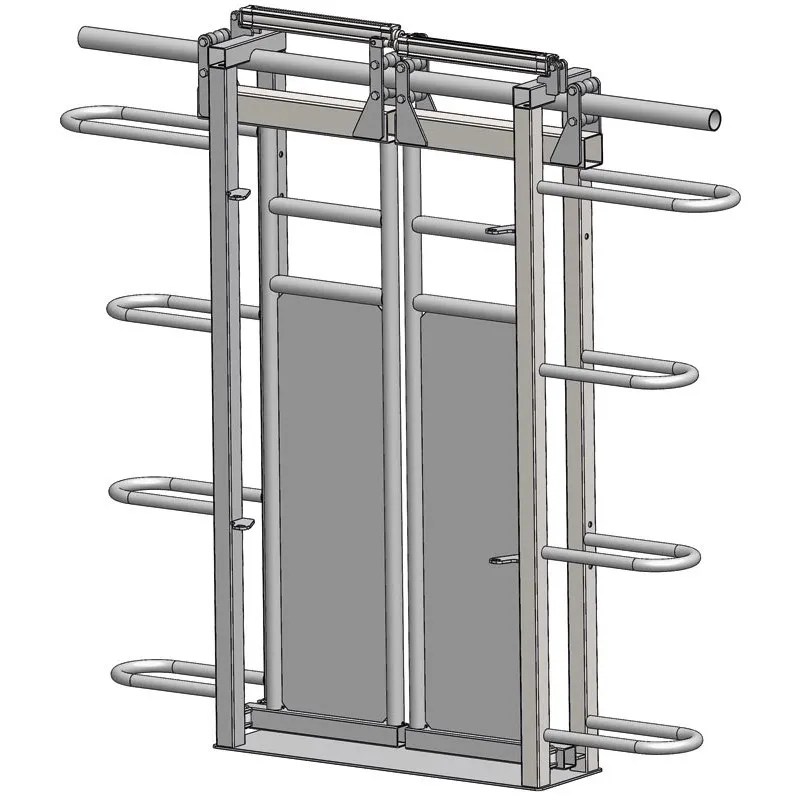

Straight sheeted panel with fixed bar
Built using reinforced metal frames and a thick floor plate.
These stop gates can be integrated at any time into fixed crush installations.
As they close quickly, they make it possible to stop the progress of animals in a race. For example, it would be beneficial if installed upstream of a weighing crush or drafting race.
A 5-bar pneumatic pressure supply per control panel or per crush PLC is required.
Option: 2-function “Go No-Go” control unit.
- Height
- 2.10 m
- Length
- 2.28 m
- Width
- 0.36 m
- Model
- Pneumatic
- Sales unit
- Unit
- Packaging
- Without packaging
- Material
- Galvanised steel
- Type
- Stop gate
