Feature-Benefits :

Bowser welded directly onto the trailer.
Excellent value for money.
The addition of the underride guard complies with the 2020 standard.

010_NOUVEAU-P1.svg
> More details

The hot-dip galvanising process can leave ash deposits inside the bowsers. They should be washed before use and before fitting the valves and drinking trough supply accessories.



Our trailers are approved for the FRENCH roads only. Those do not comply with the European regulation 167/2013.The technical characteristics of our trailers are not compatible with the requirements of the various national regulations. It is your responsibility to approve this trailer in your country and to support all the costs linked to that approval.

Bowser technical features:


- Water bowser with continuous welding, welded directly onto the trailer, - Manhole cover with seal, pre-drilled for the float option with galvanised casing,
- Vent Ø 60 mm also acting as a hose inlet for filling,
- one ‘wave-quelling’ float for the 3200 and 4400 litre models and two ‘wave-quelling’ floats for the 5200 L model, Equipment on the front part of the bowser (cover side):
- a top and bottom outlet with female threaded nipples Ø 33/42 mm (1 1/4").
These outlets can be used to attach the level gauge option.

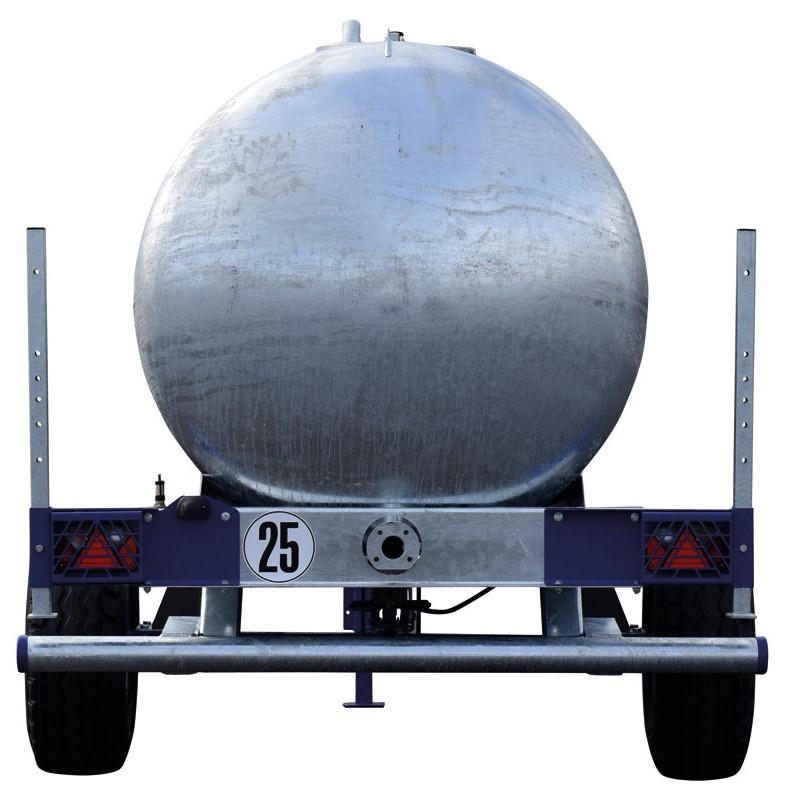

Equipment on the rear part of the bowser:
- a main rear outlet Ø 80 mm (3" 1/8) on a plate with 4 holes, designed for attaching different valve options and a Ø 20/27 mm (3/4") threaded female outlet on the main outlet side.


Trailer technical features:


- Trailer with side members, 3 to 6 mm thick depending on the model and hot-dip galvanised after fabrication,
- Wider track for better stability,
- Braked axle and parking brake,
- Underride guard on all models (compliant with the 2020 standard),
- Stabilising and retractable rear stands,

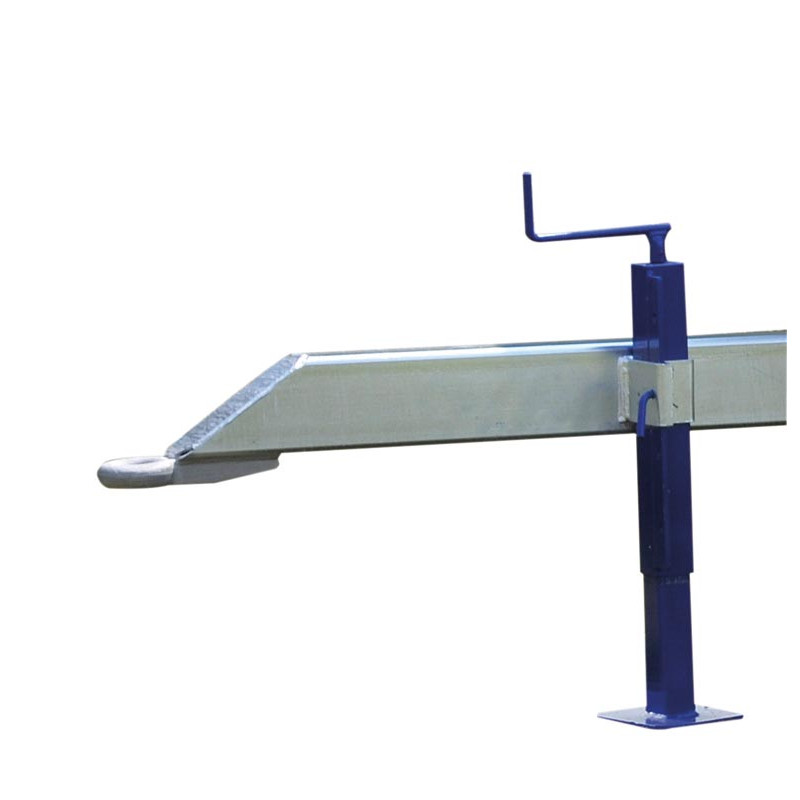

- Front tow bar support strip with large reinforcing gussets, to support the removable tow bar, fastened by 2 brackets,
- Adjustable front tow bar stand,
- Electrical socket with power cable protected within the one-piece frame,
- Rear lights are fully protected by grilles,
- Left rear light with standard licence plate holder and socket with flashing light holder,
- Supplied pre-equipped to accommodate constant-level troughs at the back.



Numerous options: valves, constantlevel troughs, tyres, ladder, gauge and flashing light.

Bowsers supplied without rear valve; to be selected from the options.
Capacity
4400 l
Diameter
1.5 m
Tyre
11.5/80 x 15.3 14 plies 6tr
Overall length
4.12 m
Axle
⧄ 70 mm
Drum diameter
300 x 60 mm
Stand
⧄ 70 mm
Hitch dimension
430 mm
Unladen weight
1340 kg
GVW
5810 kg
Track
1900 mm
Dimension under the valve
719 mm
Bowser rear dimension
2230 mm
Overall width
2190 mm
