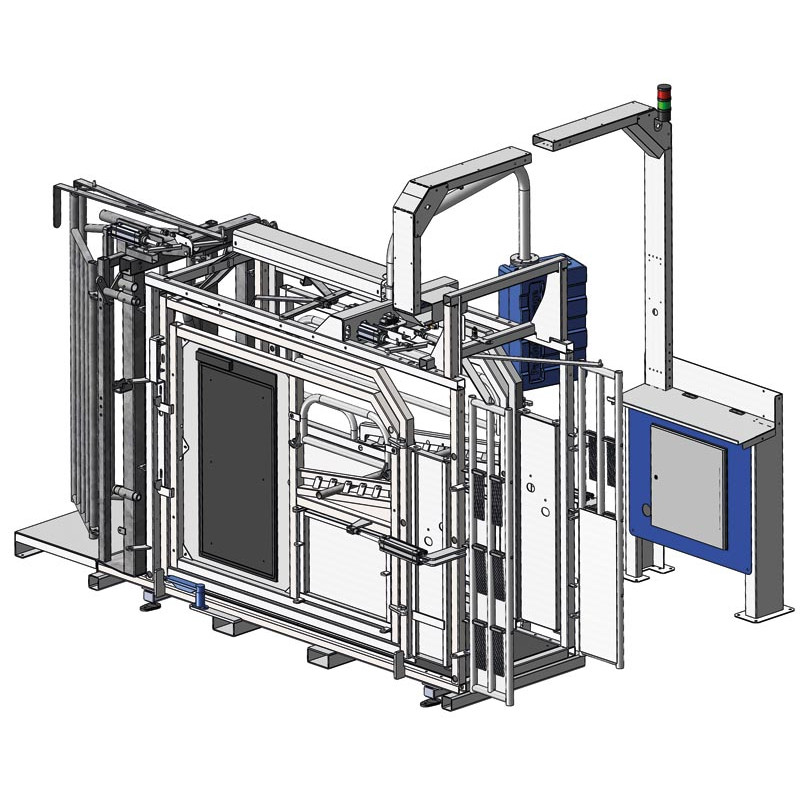

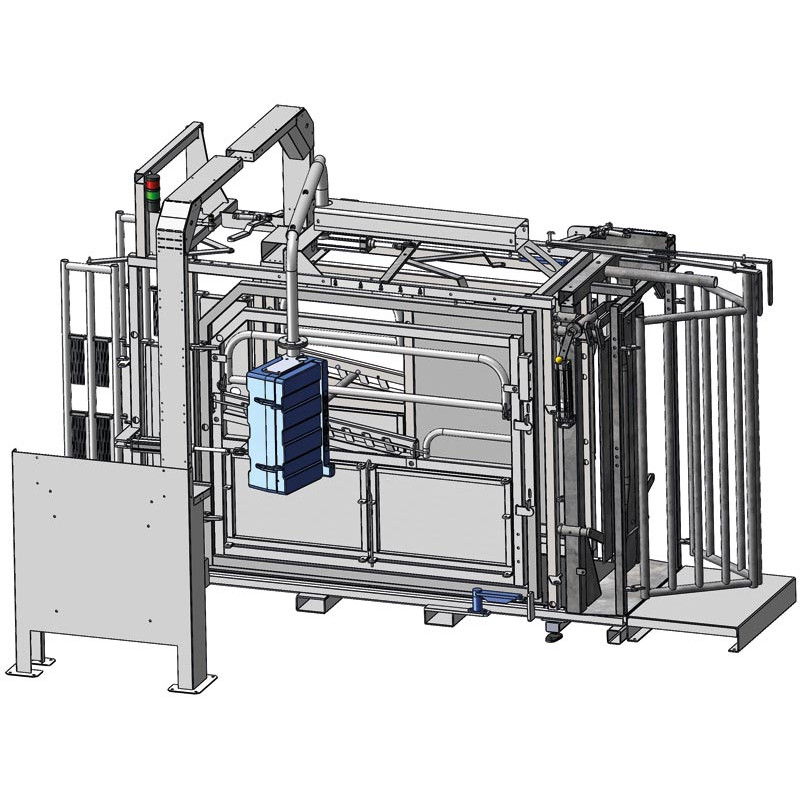

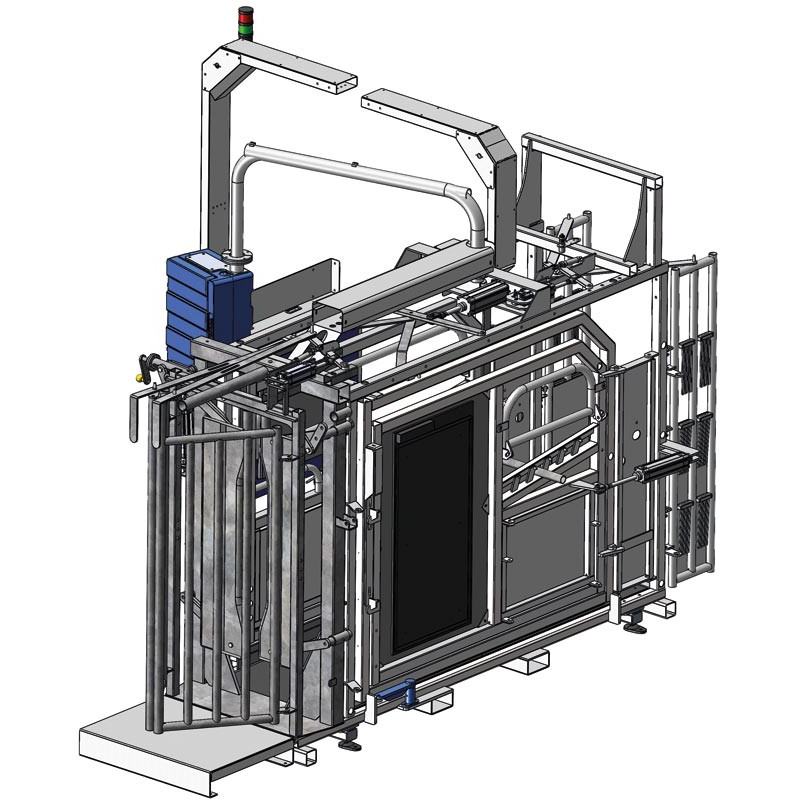

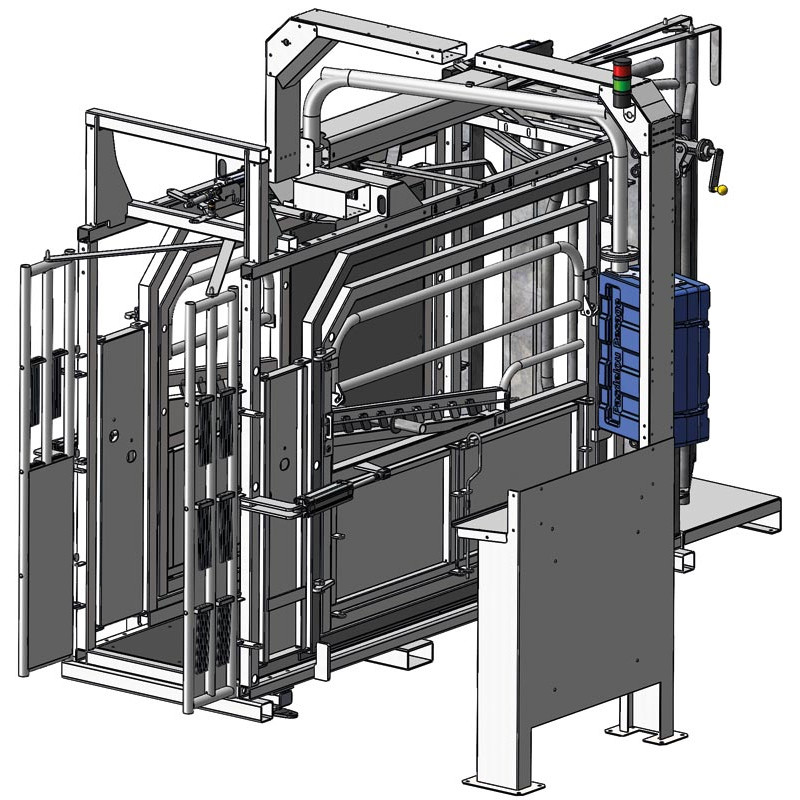

LVAPI crush - 3 gates - Adjustable sides - Opening side panels with gates

- Galvanised steel crush equipped with a ⧄ 60 mm reinforced frame,

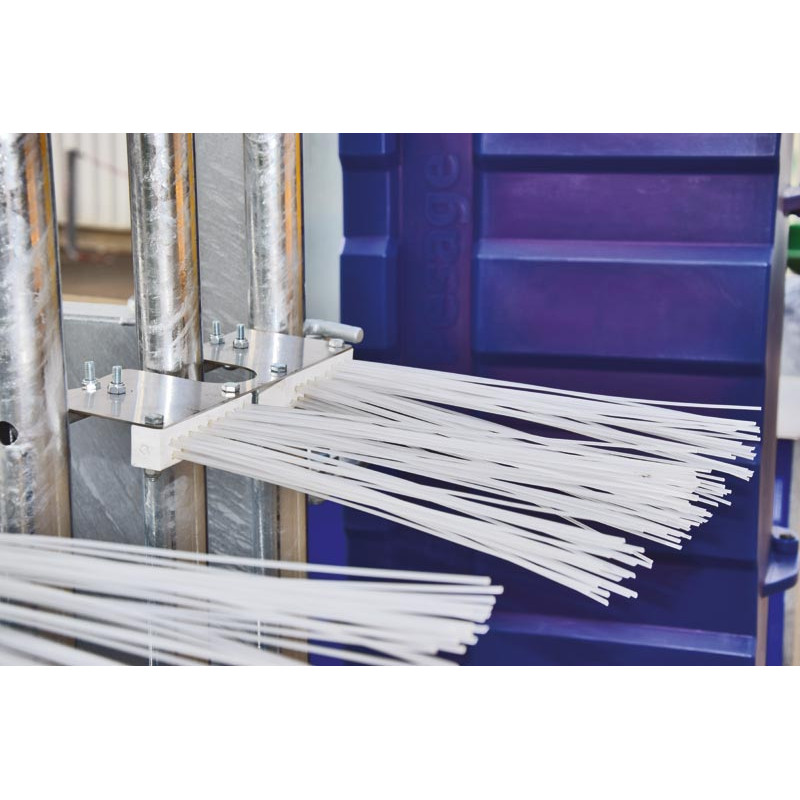

- Pneumatic rear gate with 2 leaves. Pneumatic control. Leaves equipped with retractable, vibrating and sharp filaments. Patented system which creates free space between the crush and the animals behind, to prevent a distorted weight reading during weighing,
- Factory-fitted non-slip mat on the bottom to prevent slipping and to limit noise,
- Passage sous la cage prévu pour son déplacement lors de l’installation par les fourches d’un chargeur avant,

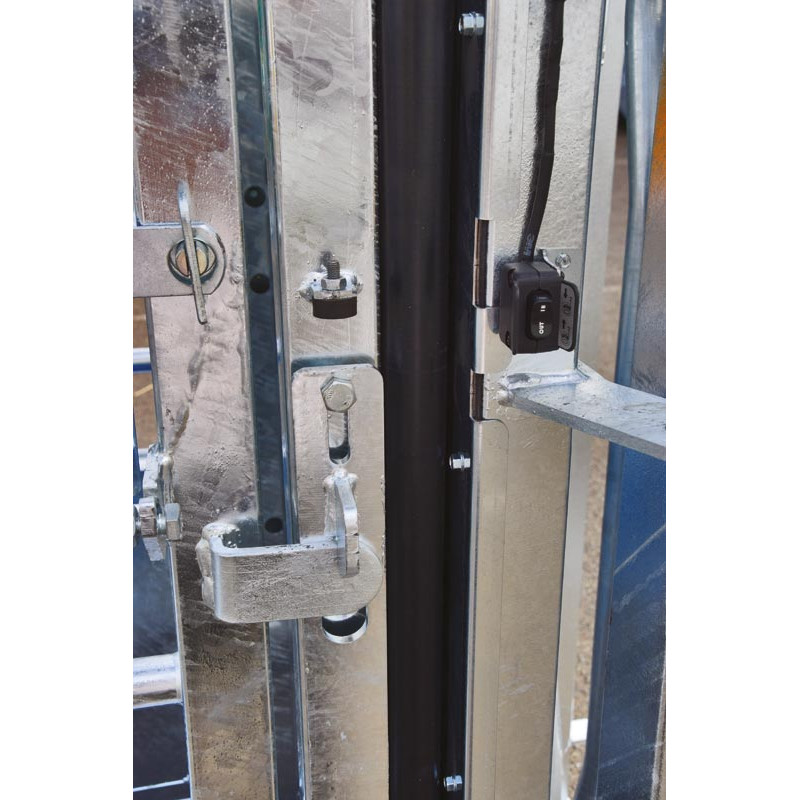

- Reinforced rotating connection rods welded to a mechanical tube with grease nipples,

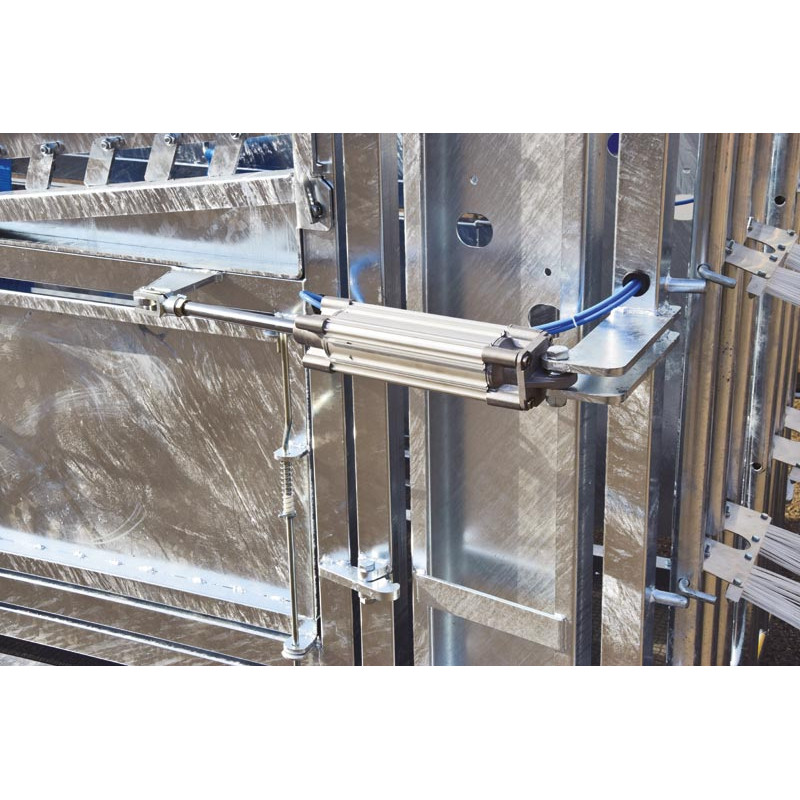

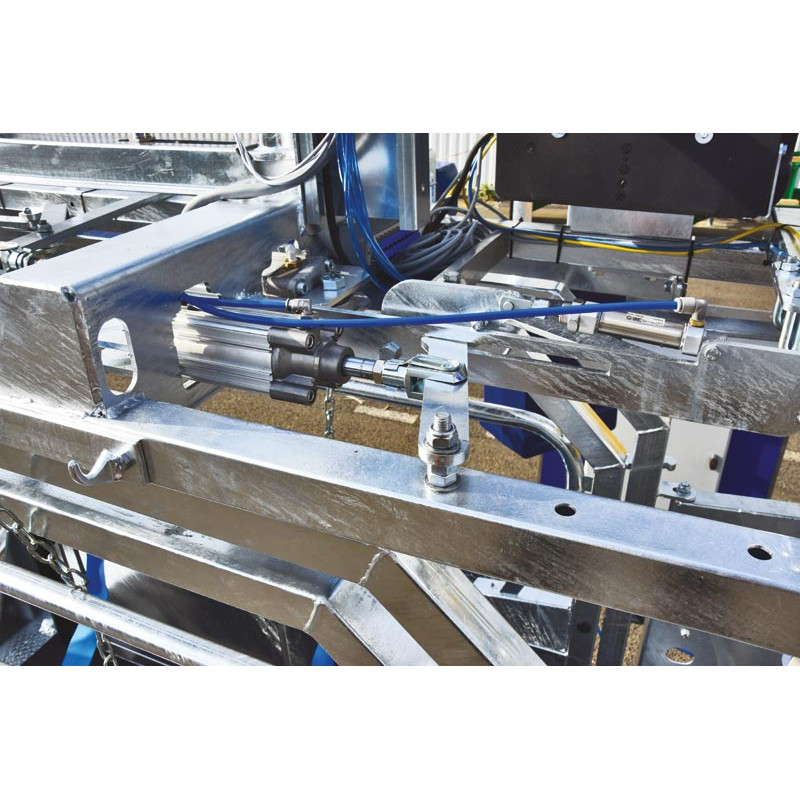

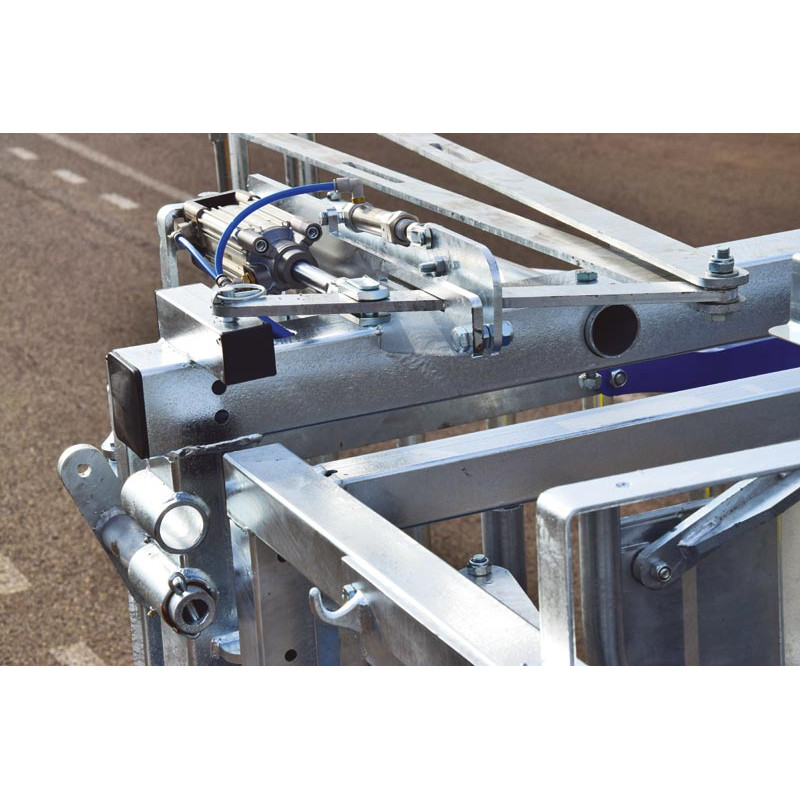

- Pneumatic cylinders operating on a pressure of 5 bar. The diameter of the cylinders depends on the force to be applied to open each component. Each of the components that are operated by the cylinders are equipped with a mechanical safety device with a hard stop to limit cylinder stress and breakage, especially when pushed by the animals,
- Factory-fitted cattle crush exit threshold,
- Factory-fitted PCCM AP pneumatic gate,

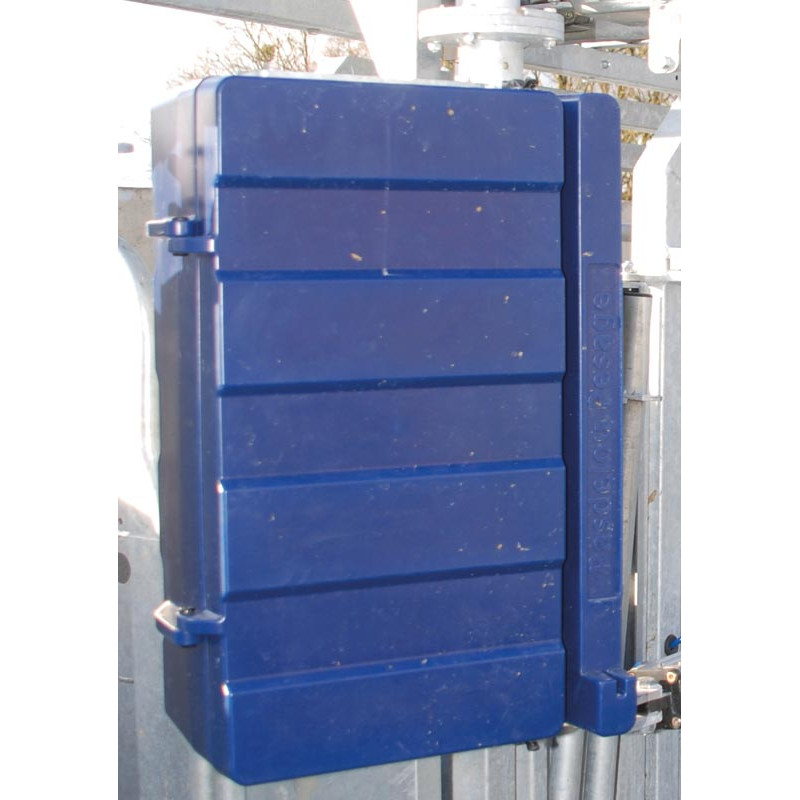

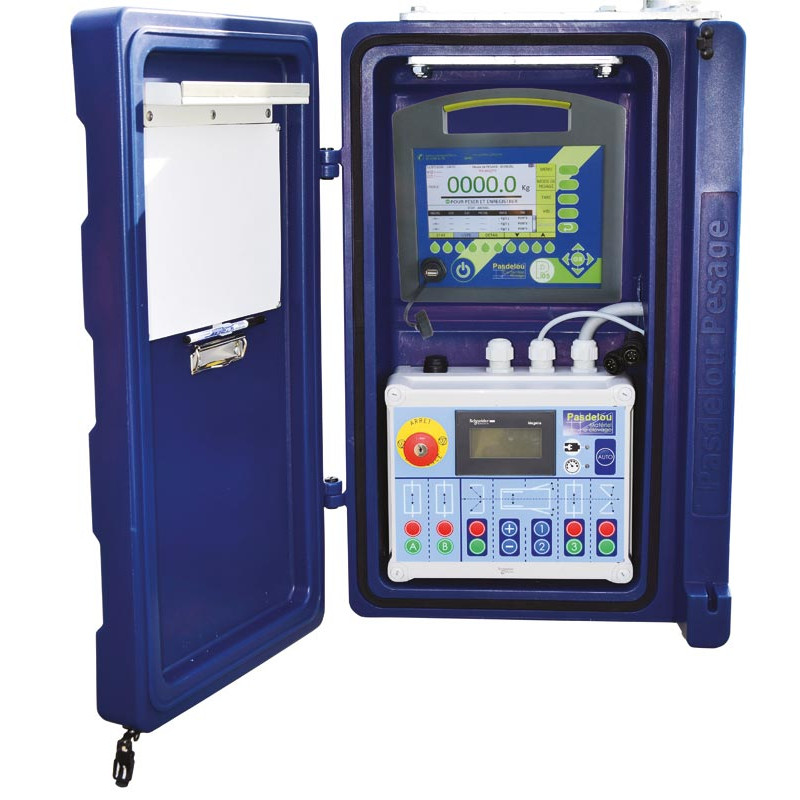

- Waterproof polyethylene cabinet with padlock ring and latch attached to a removable and reversible arm. Equipped with a P05 weighing unit and pneumatic cylinder control unit,

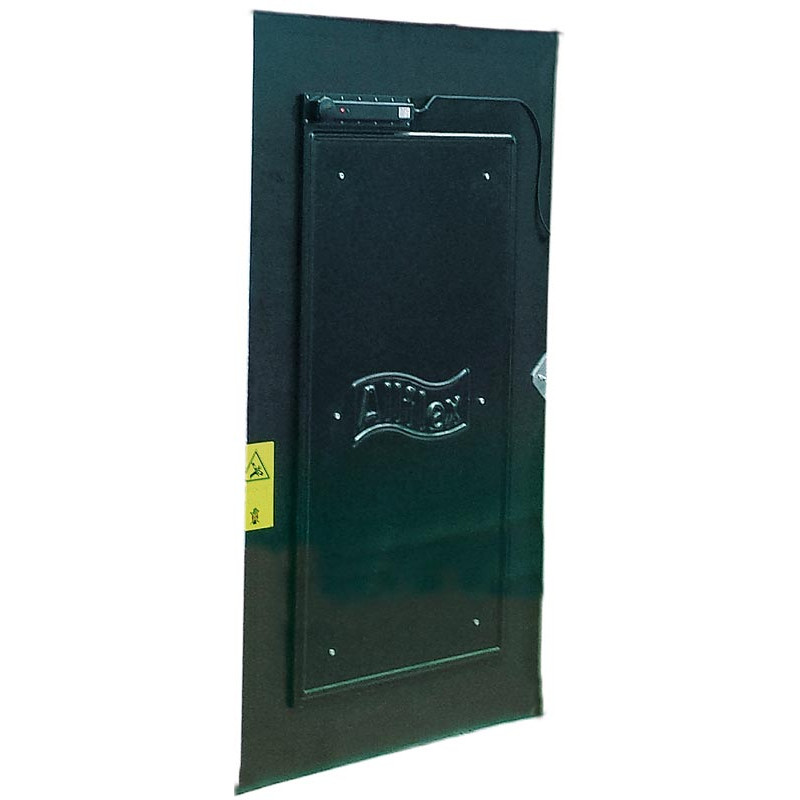

- Front side panel with EID tag reader,
-& Control panel on support frame.

Technical, electronic and pneumatic parts installed with this crush:

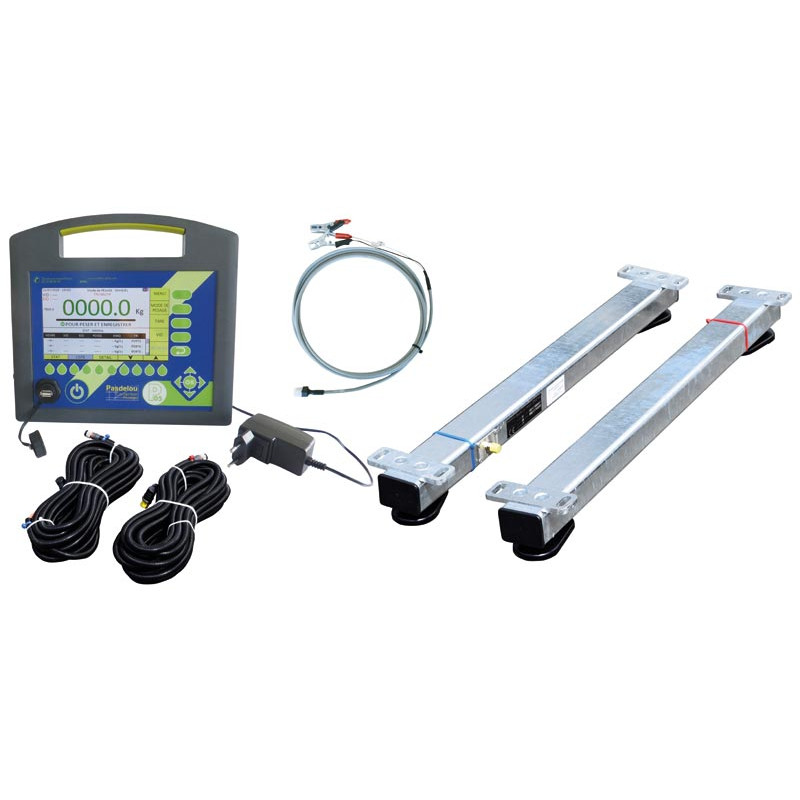

A P05 weighing system pack comprises:

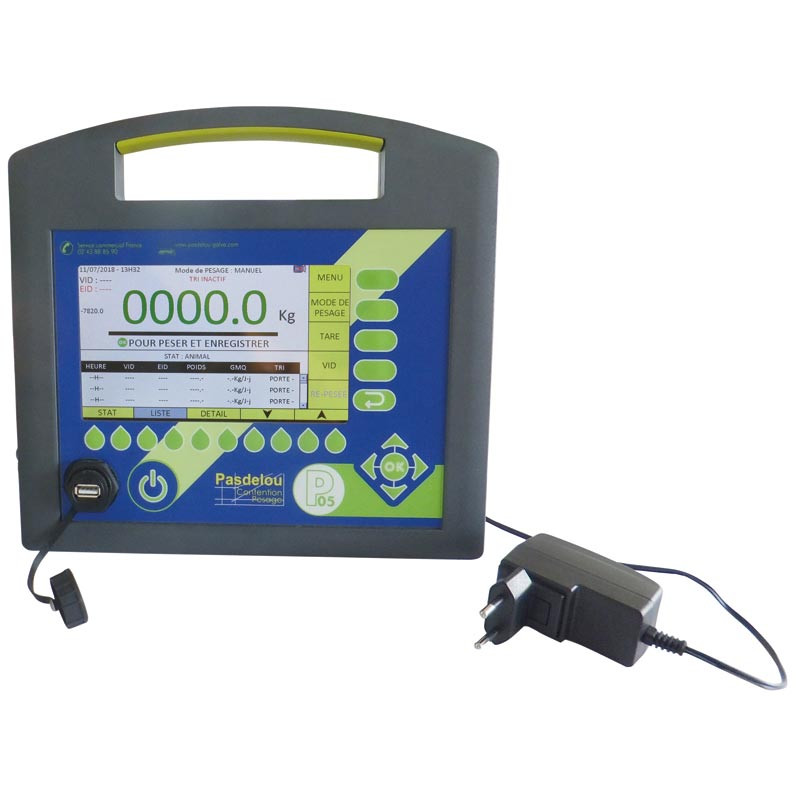

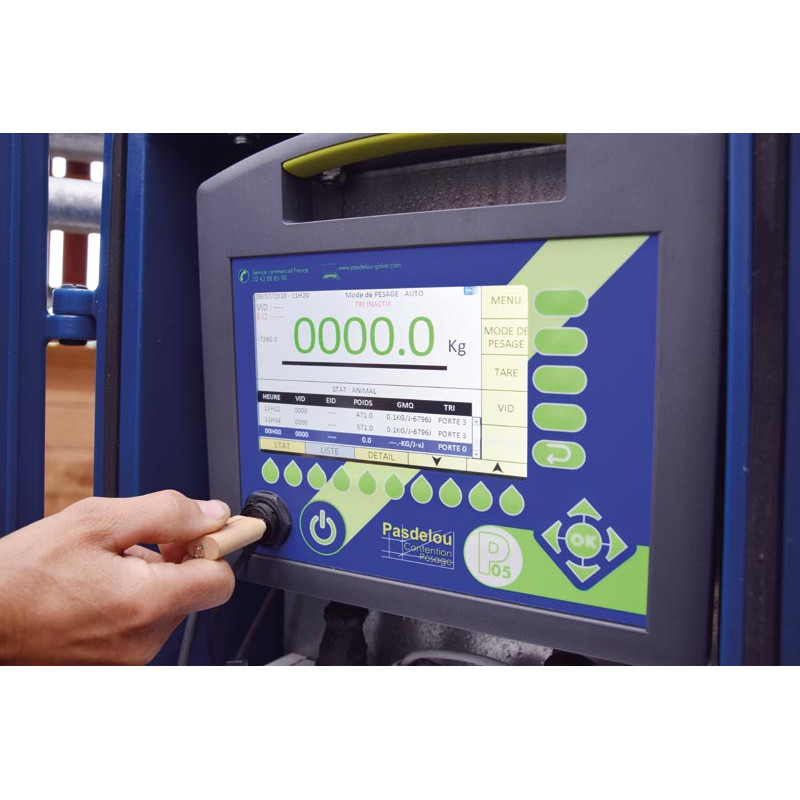

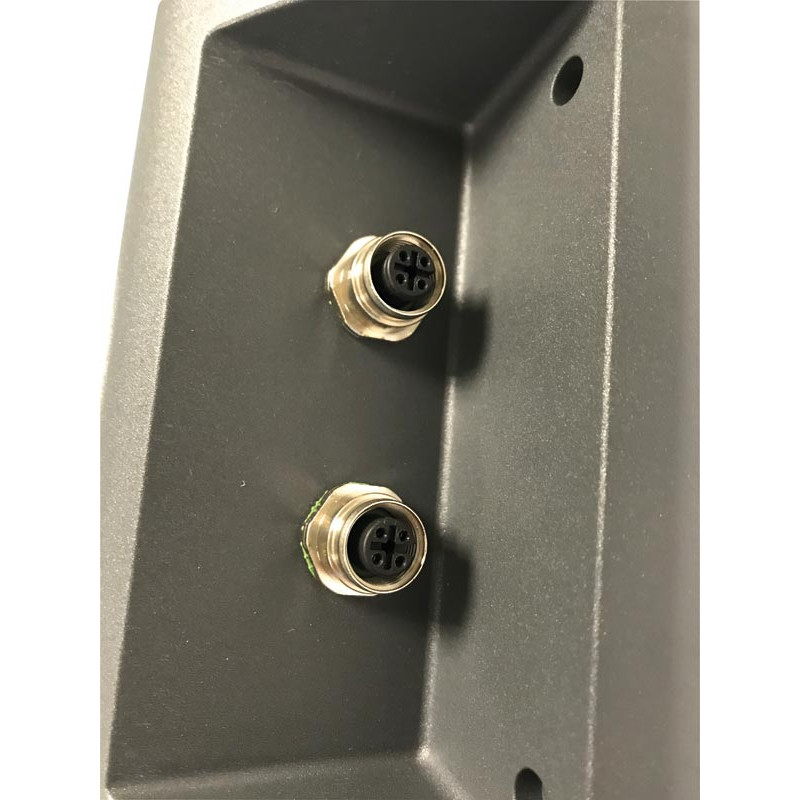

- 1 P05 weigh scale indicator (Operation and data collection, draft management, connectivity)
- 1 x 12 V battery power cable,
- 2 load bars (length 0.94 x width 0.15 x height 0.11 m)

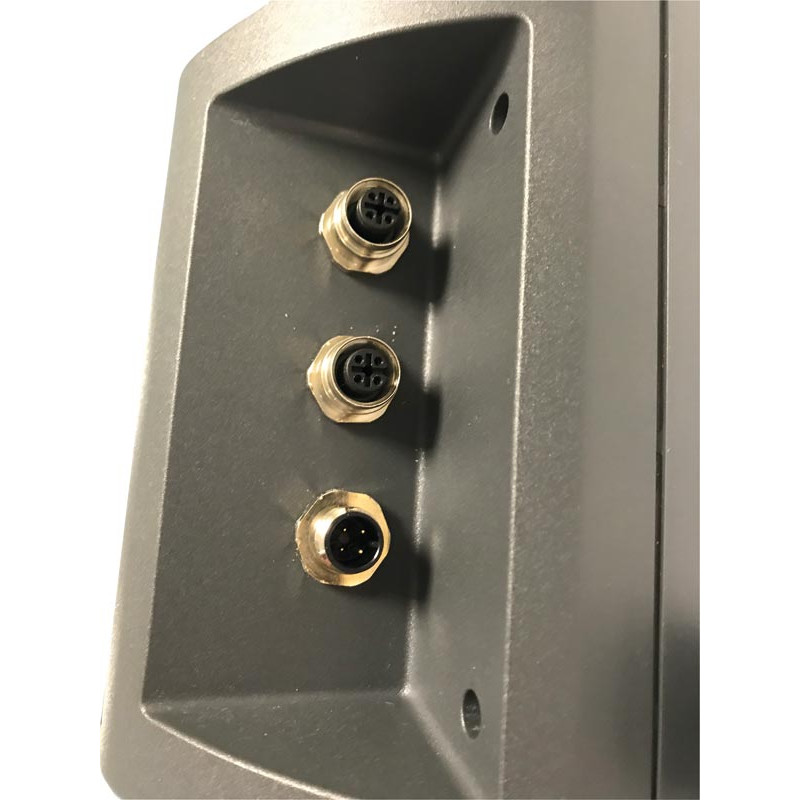

- 2 sensor cables, length 10 m for connection to the weigh scale indicator.

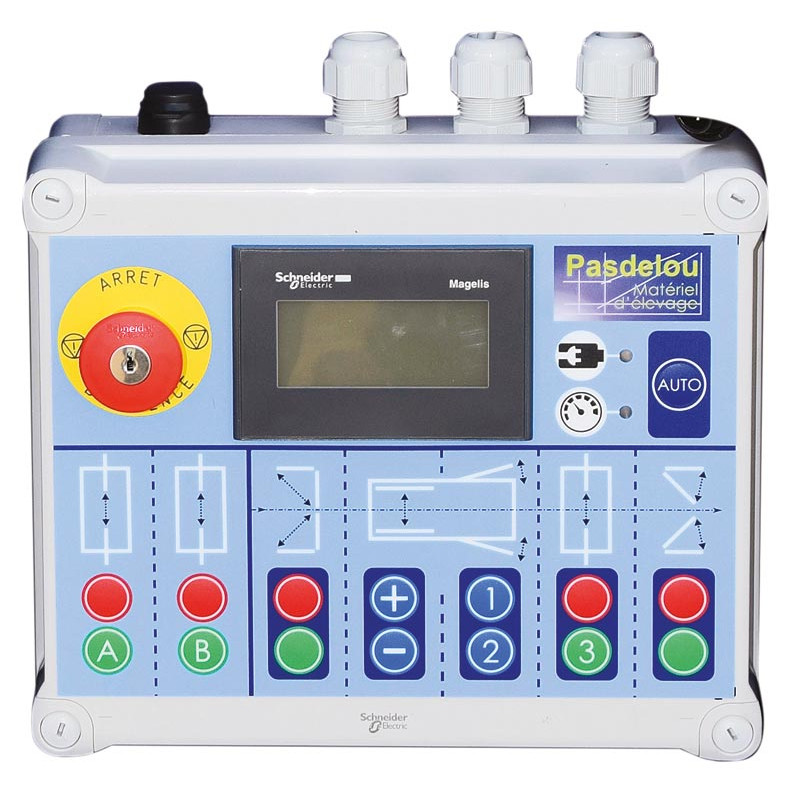

A control box equipped with:
- a keyboard with touchscreen control,
- an electric and pneumatic emergency stop,
- 2 pneumatic and electrical power-on LED indicators.
PLC control of the crush with its gates plus 2 additional stop gates in a fixed crush.

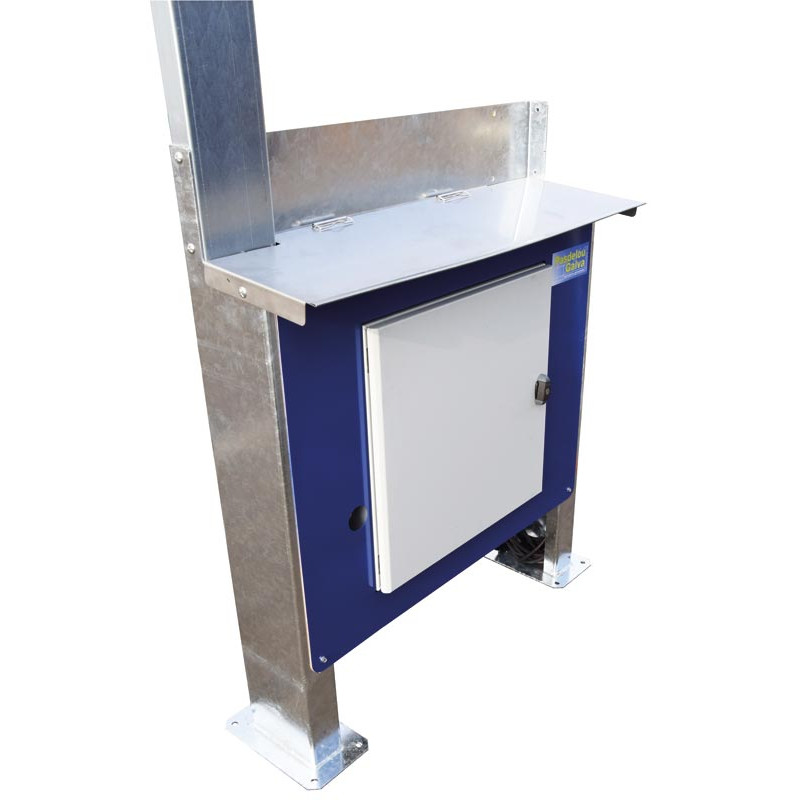

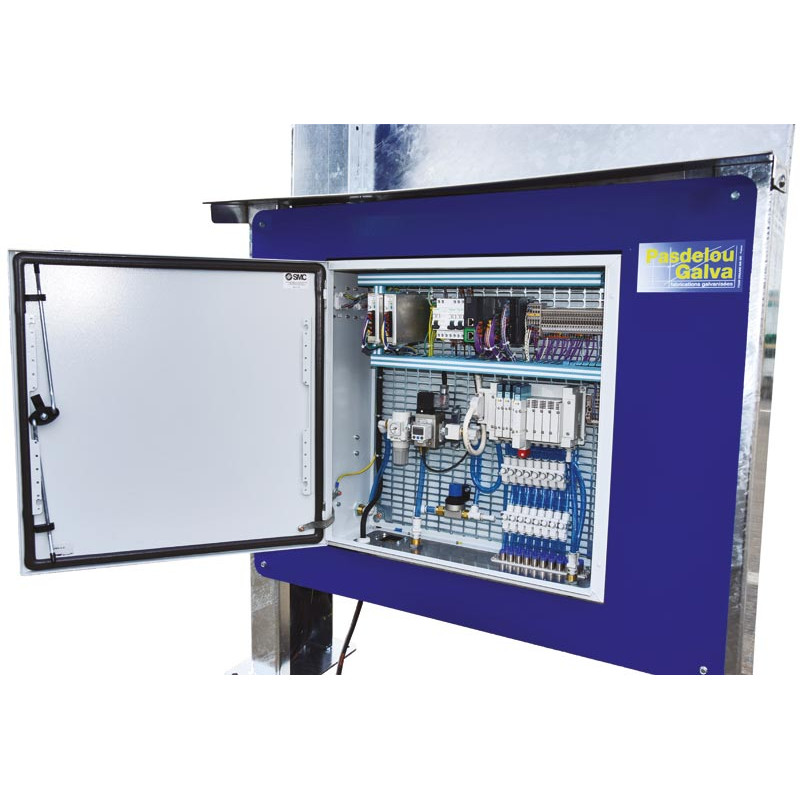

A watertight, electrical and pneumatic lockable cabinet equipped with:
- Solenoid valves operating at 12 V,
- 2 x 220 V sockets for connecting power tools,
- 1 x 220 V to 12 V transformer,
- 1 pneumatic pressure regulator with safety valves,
- flow regulators enabling the flow rate, and therefore the operating speed of each pneumatic cylinder, to be adjusted position by position,
- 1 document holder shelf.

This cabinet is mounted on a galvanised frame, which must be fixed to the ground and then connected to the crush by a fixed extension arm to route the cables.

The electrical connection system is in accordance with the standards in force for machine tools.

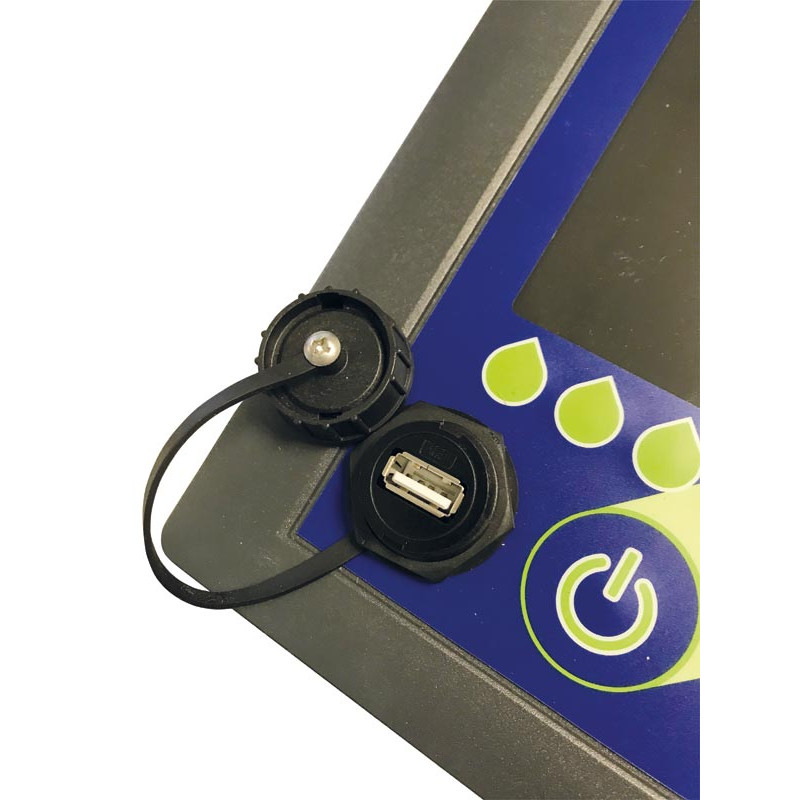

Our pneumatic and smart pneumatic installations can be operated in complete safety by a single person. With their “smart” PLC operation, you can work automatically when drafting and weighing. This means that gate opening and closing, as well as weighing can be carried out using a drafting program, either by  weight category or by EID number. The data obtained during weighing can then be sent to a PC via a USB key.

These data can then be used in the form of a spreadsheet compatible with ISAGRI zootechnical software.

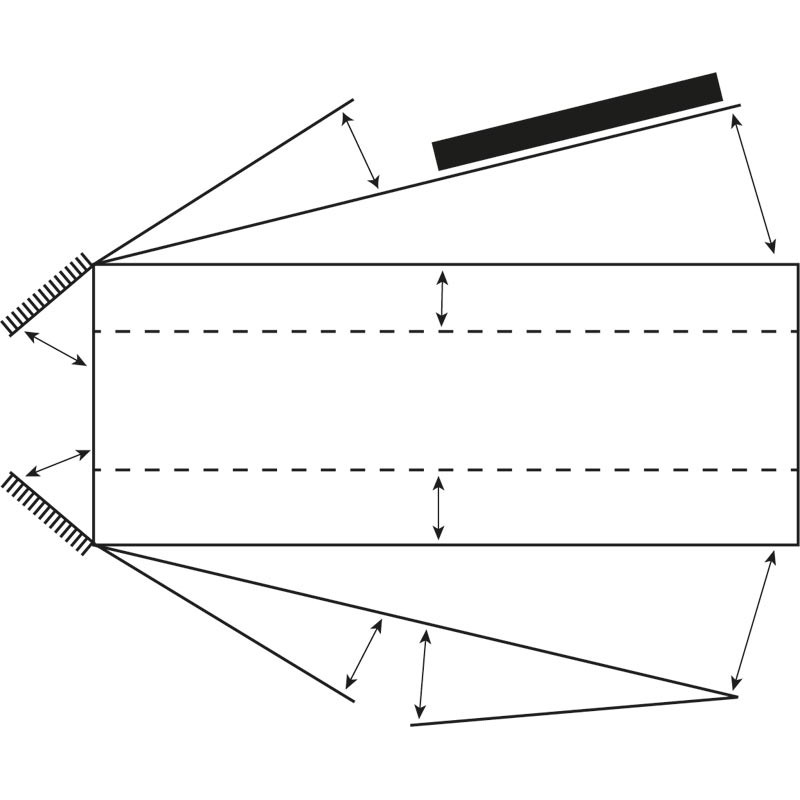

- Opening side panels with adjustable width for side draft,
- Removable and retractable ventilated leaf at the top,
- Opening sheeted gates at the bottom,
- Fully removable, inclined anti-backing system with blocking by a large bar. This system simply blocks the animals from behind depending on their size and age,
- 2 joues mobiles tôlées en partie arrière pour accompagner les parois à largeur variable,
- 2 joues mobiles en caoutchouc en partie avant pour accompagner les parois à largeur variable.
